Blue Oil Soft Hard Bonding PCB Board Rigid Flexible PCB OEM Service
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | NA |
| Delivery Time: | 15-16 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Min. Solder Mask Clearance: | 0.1mm | Pcba Standard: | IPC-A-610E |
|---|---|---|---|
| Aspect Ratio: | 20:1 | Board Thinkness: | 1.2mm |
| Minimum Line Space: | 3mil (0.075mm) | Surface Finishing: | HASL/OSP/ENIG |
| Materila: | FR4 | Product: | Rigid Flexible Board |
| Highlight: | 1.2mm Soft Hard Bonding PCB Board,OEM 8 Layer Rigid Flexible PCB,Blue Oil Rigid Flexible PCB |
||
Product Description

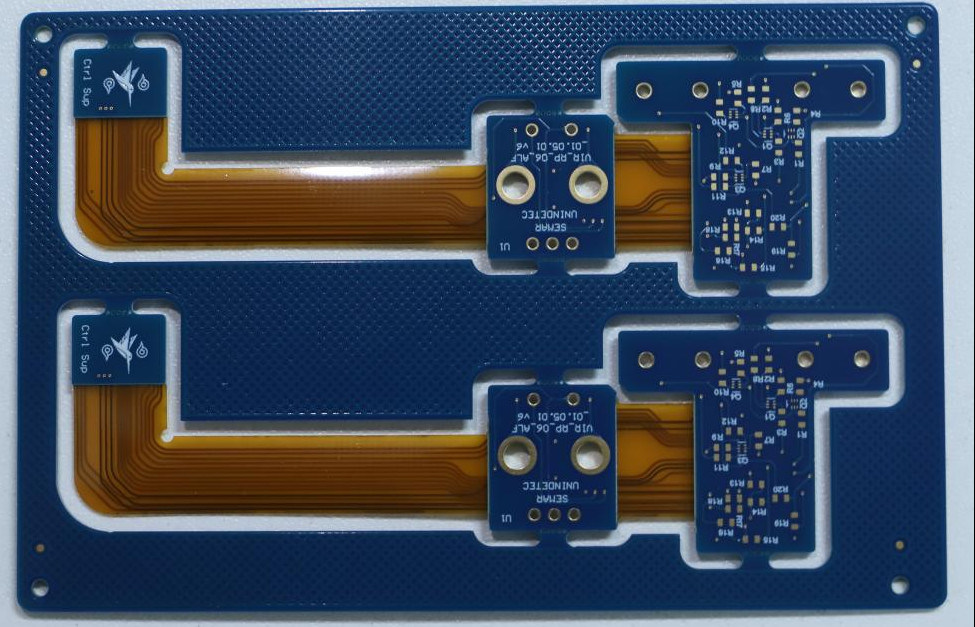

8-layer blue oil soft hard bonding board PCB
8-layer blue oil soft hard bonding board (8-layer blue oil soft hard bonding board) is a printed circuit board that combines the characteristics of rigid PCB and flexible PCB.Create a circuit board that has the structural strength of a rigid board with the flexibility of a flexible board. Rigid-flex PCB can achieve more circuit connection options, and also has high mechanical strength and good flexibility, which is suitable for application scenarios that require the advantages of both rigidity and flexibility.
Advantages of Rigid-Flex PCB:
- Optimize space and size
- Reduce the use of connectors and cables
- Adapt to complex spatial layout
- High reliability
- High temperature resistance and chemical resistance
- Reduce electrical interference
Product Features:
- Rigidity and flexibility combined
- Space saving
- High-density wiring
- Good seismic and anti-interference performance
- Improve the reliability of the system
- Design flexibility
Why Choose Us?
✔ 30 Years Expertise in Rigid-Flex PCB Manufacturing
✔ ISO 9001, ROHS, and ISO /TS16949 Certified
✔ Support customized services
✔ Professional Engineering Support (DFM, impedance simulation)
✔ Global Shipping (DHL, FedEx, UPS) – Delivered to USA, Germany, UK, Japan, Australia, etc.
Manufacturing process:
- Design and material selection: During the design phase, it is necessary to clarify which parts need to be rigid and which parts need to be flexible. App base materials (such as FR4, polyimide) and processes should be selected to ensure good integration of rigid and flexible parts..
- PCB lamination: The manufacturing of rigid-flex PCBs requires the lamination of rigid and flexible parts, which usually involves precise hot pressing and bonding to combine different material circuit layers into a complete PCB.
- Surface treatment: Surface treatment processes (such as gold plating, tin plating, OSP, etc.) are used to protect the surface of the circuit, ensuring its good solderability and anti-oxidation capability.
- Assembly and testing: After completing the circuit board, perform component placement or plug-in welding, and conduct electrical testing to ensure that the circuit functions normally and the design requirements.
