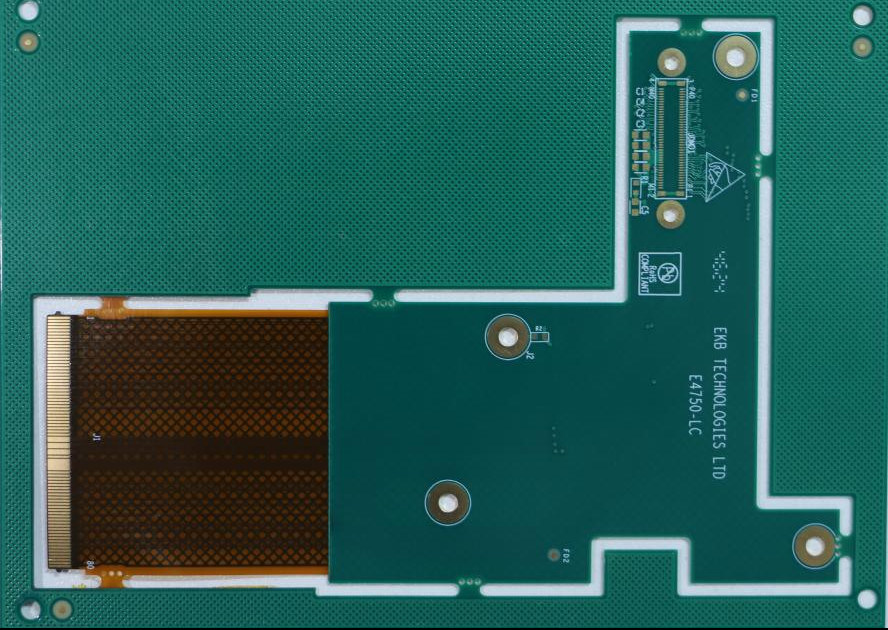

High Frequency Custom Rigid-Flex PCB Sinking Gold Surface Treatment with Blind Vias
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Type: | Custom Rigid-Flex PCB | Min Hole Size: | 0.1mm |
|---|---|---|---|
| Material: | FR4 | Min Line Width: | 3mil |
| Copper Overall: | 0.5-5oz | Pcb Standard: | IPC-A-610 E Class II |
| SMT Technology: | SMD, BGA, DIP, Etc. | Pcb Test: | Flying Probe Test, E-test, Etc. |
| Quote Requirement: | Gerber File Or Bom List | PTH/NPTH: | PTH ±0.075, NTPH ±0.05 |
| Highlight: | 6 layer rigid flex PCB,rigid flex PCB green oil,custom rigid flex PCB design |
||
Product Description
Flex-Rigid PCBs: Unlocking New Design Possibilities for Modern Devices:
Rigid-Flex Circuit Boards are a type of PCB design that combines the benefits of both rigid and flexible circuit boards. These innovative boards offer a unique solution for applications that require a high level of reliability and durability. Flex-Rigid PCBs, also known as Flexible Rigid Circuit Boards, offer a versatile solution for applications where flexibility and durability are essential. The combination of rigid and flexible substrates in these boards allows for seamless integration of components in diverse electronic devices.
Why choose custom-designed rigid-flex PCBs?:
• Perfect Fit & Form Factor:Custom PCBs are designed to your exact enclosure and mechanical constraints, avoiding wasted space and the need for adapters or rework required with off-the-shelf boards.
• Optimized Performance:You control materials, layer stack-up, impedance, and trace routing to meet your signal integrity, power, and thermal requirements—something standard boards can rarely guarantee.
• Cost Efficiency (Total Cost):While standard PCBs may look cheaper upfront, custom PCBs reduce assembly steps, connectors, and BOM count, lowering overall production and maintenance costs.
• Reliability & Quality:Fewer interconnections and tailored design reduce failure points, improving long-term reliability and consistency in your application.
• Design Flexibility & Innovation:Custom PCBs enable unique shapes, rigid-flex integration, and specialized features, helping you differentiate your product and bring new ideas to market faster.
Primary Production Steps:
• DFM & Setup: We verify your design files and prepare the production tools based on your custom specifications.
• Layer Integration: Rigid and flexible materials are laminated to form the base structure of the board.
• Circuit Formation: Drilling, etching, and plating processes are executed to establish the electrical connections.
• Protective Coating: Coverlay is applied to flexible regions, and solder mask is added to protect the entire board.
• Testing & Shipping: Final inspections and electrical tests are conducted to ensure zero defects before delivery.
