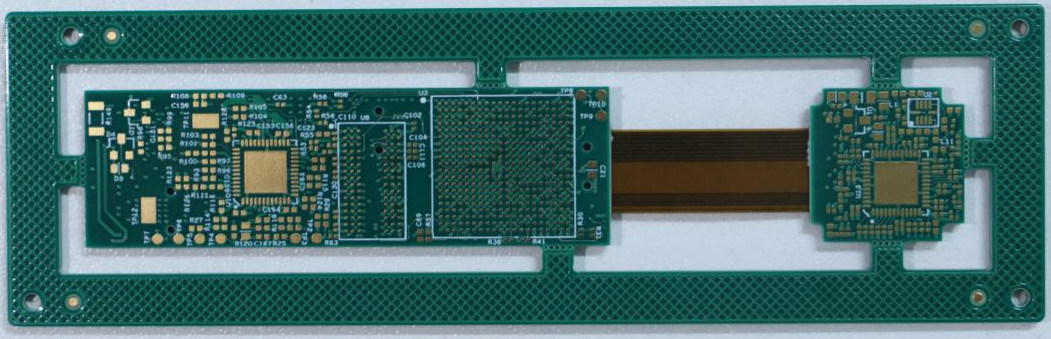

ENIG Coated Rigid-Flex PCB Board BGA Pad Design Gerber-based PCB manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Min. Solder Mask Clearance: | 0.1mm | Pcba Standard: | IPC-A-610E |
|---|---|---|---|
| Aspect Ratio: | 20:1 | Board Thinkness: | 1.2mm |
| Minimum Line Space: | 3mil (0.075mm) | Surface Finishing: | HASL/OSP/ENIG |
| Materila: | FR4 | Quotation Request: | Gerber Files,BOM |
| Highlight: | Gold Plated Flexible Rigid PCB Board,Gold Plated FR4 Circuit Board |
||
Product Description
Turnkey Flex-Rigid PCB Solution: Integrated Circuits & Stiffener Frames
Custom high‑performance flex‑rigid PCBs with integrated component assembly. Our solution combines ENIG‑finished rigid FR‑4 areas with durable polyimide flex circuits, allowing you to integrate complex components such as fine‑pitch BGA chips, high‑speed connectors, and EMI filters directly onto the board. You can fully customize layer counts (1–30+ layers), pad sizes, via types (through‑hole, blind, buried), and stiffener frames to meet your exact mechanical and electrical requirements. This integrated approach reduces assembly steps, improves reliability, and ensures optimal signal integrity in compact, high‑stress environments..
.
What is advantages of Rigid-Flex PCB?
• Space-Saving Design – Eliminates the need for connectors and cables, reducing overall assembly size and weight.
• Enhanced Reliability – Fewer interconnections mean lower risk of connection failure and improved signal integrity.
• Superior Durability – Resistant to vibration, shock, and extreme temperatures, perfect for harsh environments.
• Flexible Configuration – Customizable layer count (e.g., 2-Layer,4-layer, 6-layer, 8-layer), materials (FR-4), and bend radius to meet your design needs.
• High-Density Interconnect (HDI) – Supports micro-vias, blind/buried vias for complex circuit integration.
• RoHS & CE Compliant – Environmentally friendly and meets international safety standards.
Why Choose Us?
✔ 30 Years of PCB Expertise – Specializing in high-quality Rigid, Flex, and Rigid-Flex PCB manufacturing.
✔ Premium Quality Certifications – Fully compliant with ISO 9001, IATF 16949 (Automotive), and RoHS standards.
✔ One-Stop Customization – Support for 1-32 layers, HDI, blind/buried vias, and various surface finishes (ENIG, HASL, Immersion Tin).
✔ Expert Engineering Support – Free DFM Check and impedance simulation to ensure your design is production-ready.
✔ Global Logistics Partner – Fast shipping via DHL/FedEx/UPS to the USA, EU, UK, Japan, and Australia with door-to-door service.
Custom Rigid-Flex PCB file preparation checklist:
• Gerber files: Complete layer data (copper, solder mask, silkscreen, drill)
• Drill file: Excellon format with plated/unplated holes
• Stack-up drawing: Layer order, material types, thicknesses, flex areas
• PCB outline: Mechanical drawing or Gerber outline
• Component placement: Pick-and-place file (optional but recommended)
• BOM: Bill of materials for assembly (if PCBA required)
• Special instructions: Impedance control, flex bend requirements, surface finish, test points
Manufacturing process:
