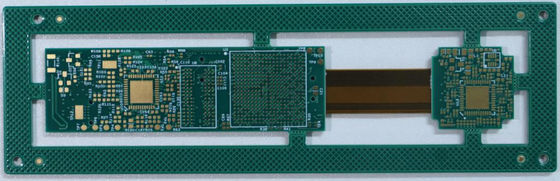

FPC OEM/ODM Service Custom Flexible PCB Polyimide Base Flexible Area + FR4 Rigid Area
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Custom Hard And Soft PCB | Min Line Width: | 3mil |
|---|---|---|---|
| Tailored PCBA Services: | Yes | Board Finished Thickness: | 0.2-5.0mm |
| Struction: | 1-30 Layer | Material: | FR4,Polyimide |
| PCB Testing: | 100% E-Test | Surface Mount Technology: | SMD, BGA, DIP, Etc. |
| Quote Requirement: | Gerber File And Bom List | Soder Ink Color: | Green/Red/White/Black/Yellow/Blue |
| Highlight: | custom rigid flex PCB,stable performance PCB,flexible printed circuit board |
||
Product Description
Custom FPC Board with Coverlay Flexible Circuit Board Manufacturer:
When it comes to cutting-edge technology and innovative design, our Flexible Rigid Circuit Boards are the perfect solution for your advanced electronic applications. Our Rigid-Flex Circuit Boards offer a unique combination of flexibility and rigidity, making them ideal for a wide range of industries and applications.Our Rigid-Flex Circuit Boards are customized to meet your specific requirements, ensuring that you get a product that perfectly fits your needs. With a customized PCB size, you can be confident that our boards will seamlessly integrate into your electronic devices, providing reliable performance and durability.When it comes to requesting a quote for our Rigid-Flex Circuit Boards, we require the submission of Gerber files and a Bill of Materials (BOM) list. These essential documents provide us with the necessary information to accurately assess your project requirements and provide you with a customized quote that meets your budget and timeline.
Advandtages of Rigid-Flexible PCB :
| Comparison Point | Rigid-Flex PCB (Our Solution) | Traditional Rigid PCB + Wires | Why It Matters |
|---|---|---|---|
| Size & Weight | Ultra-Compact
|
Bulky
|
Fits into smaller devices (wearables, drones). |
| Reliability | Failure-Proof
|
Prone to Breakage
|
Products last longer; fewer returns. |
| Assembly Time | One-Step Assembly
|
Time-Consuming
|
Faster production; lower labor costs. |
| Signal Quality | High Speed
|
Noisy
|
Better performance for high-speed data. |
| Design Freedom | 3D Capable
|
2D Only
|
Enables innovative, curved product designs. |
Rigid-Flex PCB Manufacturing Flow Chart :
