Rigid-Flex PCB Board with ENIG Surface Treatment Customizable Wearable Device
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Rigid-Flex PCB Board | Layers: | 1-30 |
|---|---|---|---|
| Base Material: | FR4 | High Temperature Resistant: | Yes |
| Min. Hole Size: | 0.1mm | Panel Size: | Customized |
| Surface Treatment: | OSP/HASL/ENIG | Board Thickness: | 1.6/1.2/1.0/0.8mm |
| Special Thickness: | 2.0/0.6/0.4/0.2mm | Silkscreen: | White,Black,Yellow,Red |
| Quotation Files: | Gerber Files,BOM List(Pcba) | Solder Mask Colour: | Green,White,Black,Blue,Yellow |
| Highlight: | FR4 rigid-flex PCB with white silkscreen,custom rigid-flex printed circuit board,FR4 rigid-flex PCB customized design |
||
Product Description
Custom ENIG High Temperature UL / IPC Certified:

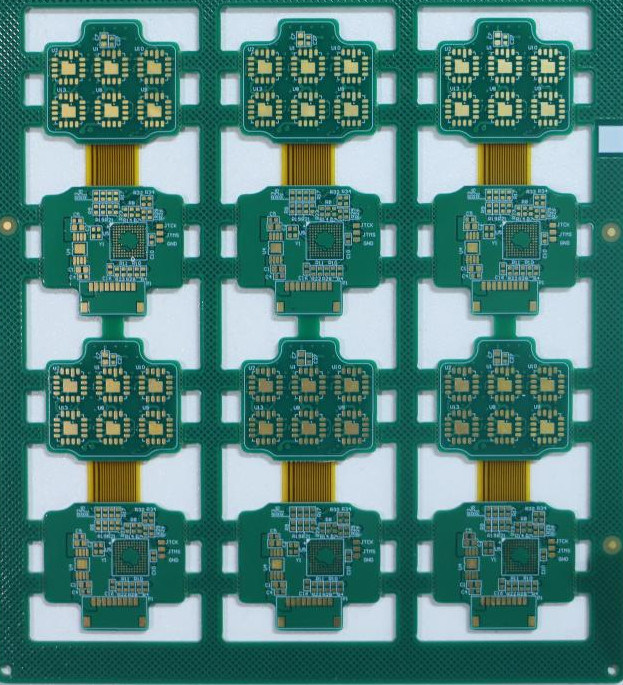

Say goodbye to the cumbersome combination of traditional "rigid board + FPC + connector." Our immersion gold rigid-flex PCBs seamlessly combine FR4 rigid substrates with polyimide (PI) flexible substrates. They support three-dimensional bending and folding for easy installation, effortlessly adapting to the compact layouts of ultra-small devices such as smartwatches, medical endoscopes, and automotive sensors. This reduces the number of connection points by more than 50%, resulting in a 30% reduction in failure rate.
The main characteristics of rigid-flex PCB :
• Type: Rigid-Flex (FR4 + PI)
• Layers: 1–30L
• Finish: ENIG/OSP/HASL
• Line/Spacing: 3/3 mil typical
• Min Hole: 0.1 mm typical
• Impedance: ±5%
• Certifications: RoHS / UL
How to order customized Rigid-Flex PCB Board?:
Send us your:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
