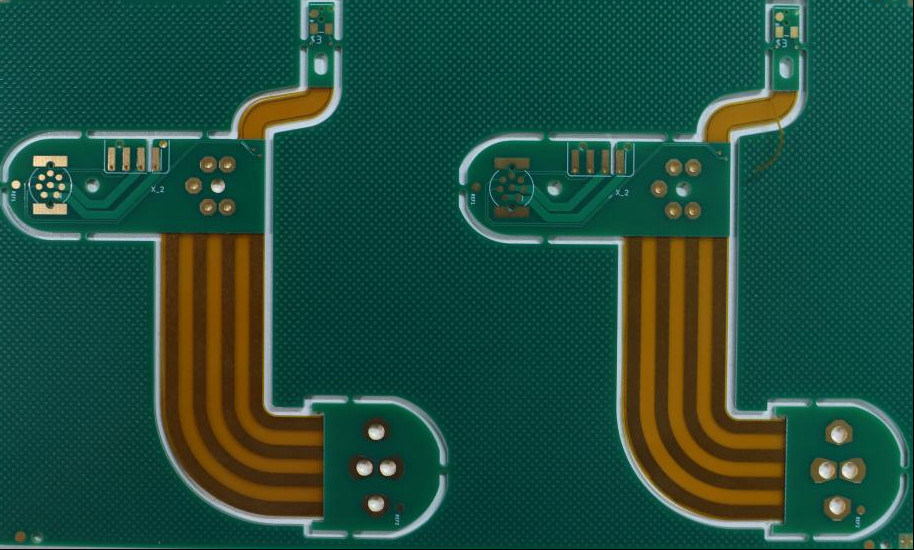

High-Temp Resistant Rigid-Flex PCB Custom Solutions for Smart Tech
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Type: | Rigid-Flex PCB | 100% E-test: | Yes |
|---|---|---|---|
| CNC Routing: | Yes | Min.hole Size: | 0.1mm |
| Copper Overall: | 0.5-5oz | Bom Format: | Excel,PDF |
| Custom Files: | Gerber Files | Outer: | Carton Box |
| Normal Layer: | 2/4/6/8/10L | Components: | SMD, BGA, DIP, Etc. |
| Panel Thick: | 1.6/1.2/1.0/0.8mm Or Tailored | Solder Mask Colo: | Green,Black,White,Blue,Yellow,Red |
| Highlight: | OSP Soft And Hard PCB Board,7x6cm Double Sided Printed Circuit Board,Soft And Hard Printed Circuit Board 7x6cm |
||
Product Description
Custom Flex-Rigid PCBs for Your Next Project:
Our custom flex-rigid PCBs deliver the best of both worlds: rigid platforms secure critical components, while flexible ribbon cables provide unmatched design freedom for tight, moving assemblies. With high-reliability gold plating and robust polyimide construction, these boards are engineered to thrive in harsh environments, offering a compact, lightweight solution that eliminates bulky wiring harnesses and boosts system durability.
Why choose our brand?
Why settle for less? Xingqiang’s custom rigid-flex PCBs combine top-tier quality with cost efficiency. As a source factory, we eliminate middlemen to offer competitive prices without compromising on performance. Our technical support and quick turnaround times ensure your project stays on schedule. Whether you need impedance control or complex stack-ups, we provide tailored solutions that turn your innovative designs into reality.
How to start your pcb custom project?
Send us your:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
Flex-Rigid PCBs: Ideal for These Smart Devices
• Wearables: Smartwatches, fitness trackers, and AR glasses use them to follow curved body contours while keeping sensors and displays securely anchored.
• Foldable Phones: Their flexible layers endure thousands of bends, ensuring uninterrupted performance in foldable and rollable screens, while rigid sections protect core chips and cameras.
• Medical Tech: Portable ultrasound scanners, insulin pumps, and hearing aids rely on their compact, vibration-resistant build for reliable operation in clinical and daily use.
• Drones & Robotics: They save weight and space in drone gimbals and robot joints, with gold-plated contacts maintaining signal integrity under high vibration.
• Automotive Electronics: ADAS systems, HUDs, and infotainment units use them to fit into tight, irregular spaces, resisting temperature swings and road vibration.
