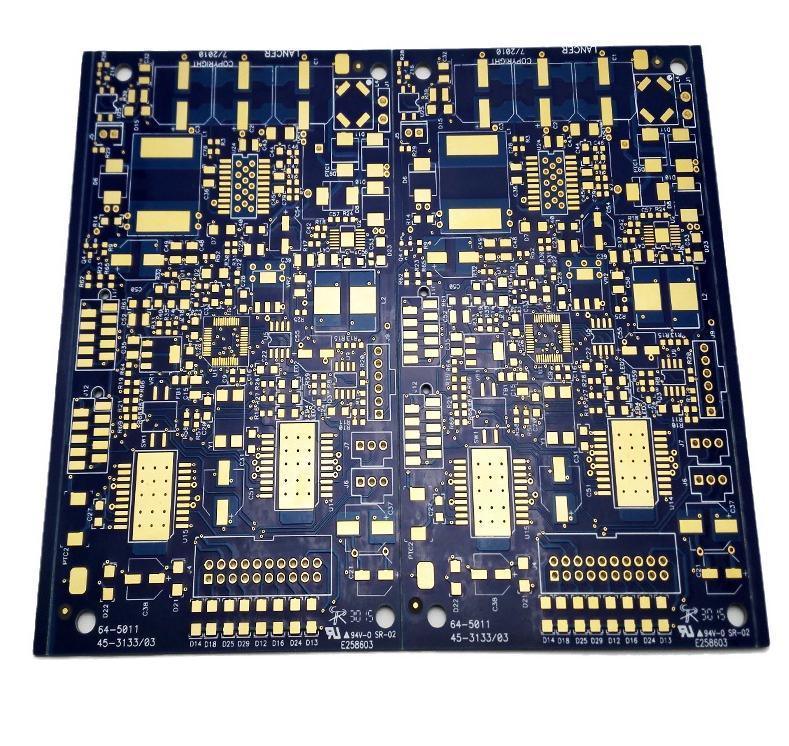

FR4 Material HDI Multilayer PCB High Density Interconnect PCB Board 600X100mm
Product Details:
| Brand Name: | High Density PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Min. Hole Size: | 0.1mm | Pcba Standard: | IPC-A-610E |
|---|---|---|---|
| Min. Order Quantity: | 1piece | Material: | FR4 |
| Layer: | 1-30 | Board Size: | 600X100mm |
| Board Thickness: | 1.2mm | Impedance Control: | ±10% |
| Highlight: | FR4 Material High Density Interconnect PCB,FR4 Material HDI Multilayer PCB,High Density Interconnect PCB 600X100mm |
||
Product Description
Product Description:
Why Choose HDI?HDI technology enables next-generation electronics by breaking space constraints while boosting electrical performance. As devices evolve toward smaller form factors with higher functionality, HDI PCBs provide the essential foundation for innovation in 5G, AI, IoT, and portable medical systems.
Performance Advantages:
- Miniaturization: 50-70% size/weight reduction vs. conventional PCBs.
- Enhanced Signal Integrity: Shorter paths reduce inductance/crosstalk (critical for >5 GHz).
- Improved Thermal Management: Dense thermal vias under BGAs.
- Higher Reliability: Filled micro-vias resist thermal stress (IPC-7093).
- Design Flexibility: Supports complex ICs (0.35mm-pitch BGAs, SiPs).
Structural Configurations (Common Types)
| Type | Structure | Typical Applications |
|---|---|---|
| 1-N-1 | 1 HDI layer sequence | Wearables, Basic IoT |
| 2-N-2 | 2 HDI layers per side | Smartphones, Tablets |
| Any-layer | Micro-vias on all layers | High-end CPUs, GPUs, 5G Modules |
| ELIC | Every Layer Interconnect | Aerospace, Medical Implants |
Applications:
The High Density PCB, originating from China, is a reliable and high-quality product suitable for a variety of applications and scenarios due to its exceptional attributes. With 100% testing service, this product ensures top-notch quality and performance.
One of the key features of the High Density PCB is its minimum hole size of 0.1mm, making it ideal for applications where space is a premium and intricate designs are required. The minimum line width and spacing of 0.075mm further enhance its suitability for compact and complex electronic designs.
Designed to meet the demands of modern electronics, the High Density PCB is a perfect choice for applications where signal integrity (SI) is crucial. Its high-density design and precision manufacturing make it well-suited for applications requiring reliable SI performance.
Automotive electronics is an area where the High Density PCB excels. With its ability to handle high-frequency signals and maintain signal integrity, this product is a preferred choice for automotive electronic systems that demand high reliability and performance.
Whether you require a small quantity or a larger order, the High Density PCB offers flexibility with a minimum order quantity of 5㎡. Additionally, with a copper thickness of 2oz on the outer layer and 1oz on the inner layer, this product ensures durability and conductivity in various environments.
Customization:
Product Customization Services for the High Density PCB product:
Brand Name: High Density PCB
Place Of Origin: China
Testing Service: 100% Testing
Thickness: 1.2mm
Impedance Control: ±10%
Surface Finish: HASL, ENIG, OSP
Key Features: Signal Integrity, SI, Smartphones, Staggered Vias
FAQ:
Q: What is the brand name of this PCB product?
A: The brand name of this PCB product is High Density PCB.
Q: Where is this PCB product manufactured?
A: This PCB product is manufactured in China.
Q: What makes the High Density PCB unique?
A: The High Density PCB is known for its compact design and ability to accommodate a high number of components within a small area.
Q: Are the High Density PCBs suitable for high-performance electronic devices?
A: Yes, the High Density PCBs are ideal for high-performance electronic devices due to their excellent signal integrity and reliability.
Q: Can the High Density PCBs be customized to specific requirements?
A: Yes, the High Density PCBs can be customized to meet specific requirements such as size, number of layers, and material composition.
