FR4 Double Sided Blue Oil Half Hole Plate PCB Multilayer Printed Circuit Board

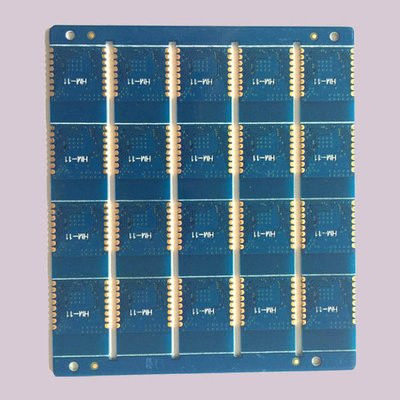

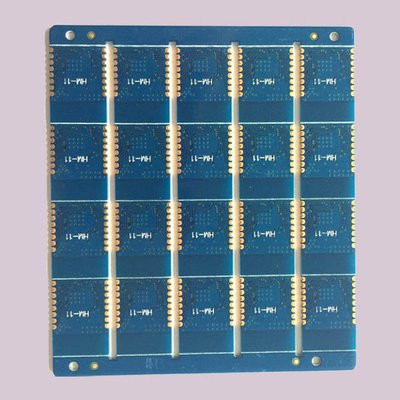

 Double-sided blue oil half-hole plate

product Features:

• Two-sided wiring
• through hole connection
• component placement
• Higher circuit density

1. Two-sided wiring

• Refers to PCBs that have conductive traces on both the top and bottom layers.

• It allows more complex circuit designs compared to single-sided boards.

• Components can be mounted on one or both sides.

• Enables better routing and efficient use of board space.

2. Through hole connection

• A method of mounting components where leads are inserted into holes drilled through the PCB and soldered on the opposite side.

• Strong mechanical bonds – ideal for components that experience stress (like connectors).

• Used on both single-sided and double-sided PCBs.

• Supports interconnection between top and bottom layers.

3. Component placement

• Refers to the strategic positioning of electronic components on a PCB.

• Affects:

  • Electrical performance

  • Heat dissipation

  • Manufacturability

  • Signal integrity

• In two-sided PCBs, placement can be done on both sides (mixed technology: SMD + through-hole).

4. Higher circuit density

• Means more circuitry per unit area of the PCB.

• Achieved by:

  • Using two-sided or multi-layer boards

  • Smaller components (e.g., surface-mount devices)

  • Finer trace widths and spacing

• Benefits include smaller product size and improved performance.

Manufacturing process:

• Design and layout:Firstly, the PCB design is carried out through circuit design software, with wiring and component placement on both sides, and the position type of vias are planned at the same time.
• Drilling and electroplating: Drilling is carried out according to the design requirements, and electroplating is performed after drilling to form a via the circuits on both sides.
• Etching: Remove the excess copper foil to form the desired circuit pattern.
• Assembly and welding: After the components are installed, welding treatment is carried out, which can be done using surface-mount technology (SMT) or through technology (THT).

Q: Why choose us?
A: We are a professional PCB factory engaqed in this line for over 30 years. We mainly produce PCB, FPC, especially good at making Rigid-flex, Anylayer HDI, Multi-layer FPC, High frequency PCB and so on.Welcome to our factory for visit!

Q: Can you do the design for us?
A: Yes,of course. Your own designs/sketches/pictures are also welcomed.

Q: What's the price?
A: The price depends on quantity, SPEC, package, etc. Based on the market research and wholesaler client feedback, the price we offered are competitive enough to help them get more market share in the following years.

Q: Can you give me a discount?
A: Our policy is that the bigger quantity, the lower price, so we will quote you the best price based on your order quantity.

Q: How about your after sale services?
A: We do accept to change the goods within 30days after delivery if it's our side caused quality problems.

Q:Do you accept the OEM order and Private Label?
A: Sure. we welcome OEM and ODM, and can put private label.

Q:When can i get replied?
A: Usually we will quote for you within 8 hours after we get your inquiry(Except sleep, we are always here to serve you).

Q: How about the lead time?
A: In General, the lead time will be 7-15 working days for prototype. But if bigger order,please confirm with us further.
