Gold Plating Process Double Sided FR4 PCB Two Sided Wiring Printed Circuit Board
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 7-10 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000 |
|
Detail Information |
|||
| Min. Solder Mask Clearance: | 0.1mm | Pcba Standard: | IPC-A-610E |
|---|---|---|---|
| Aspect Ratio: | 20:1 | Board Thinkness: | 1.2mm |
| Minimum Line Space: | 3mil (0.075mm) | Surface Finishing: | HASL/OSP/ENIG |
| Materila: | FR4 | Product: | Print Circuit Board |
| Highlight: | Gold Plating Double Sided FR4 PCB,Two Sided Wiring Printed Circuit Board |
||
Product Description

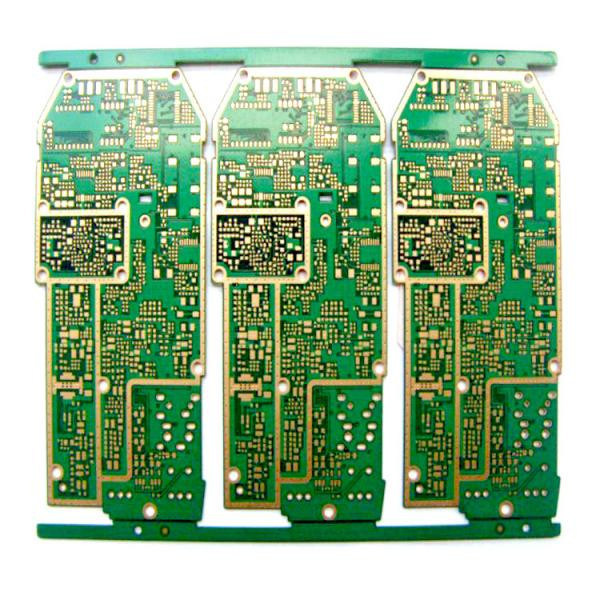

Double-sided gold plating process
Advantages of Double-sided PCB:
- Increase the wiring space
- Improve the circuit functional density
- The cost is relatively low
- Good electrical performance
- Adapt to high integration requirements
product Features:
- Two-sided wiring
- through hole connection
- component placement
- Higher circuit density
Manufacturing process:
- Drilling and electroplating: Drilling is carried out according to the design requirements, and electroplating is performed after drilling to form a via the circuits on both sides.
- Etching: Remove the excess copper foil to form the desired circuit pattern.
- Assembly and welding: After the components are installed, welding treatment is carried out, which can be done using surface-mount technology (SMT) or through technology (THT).
