1OZ Copper Wall Black Oil Drone Circuit Board With White Silkscreen Colour
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 7-10 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000 |
|
Detail Information |
|||
| Copper Wall Thickness: | 1OZ | Marterial: | FR4 |
|---|---|---|---|
| Soldermask: | Green/ White/ Black/ Blue/ Yellow | Feature: | Lightweight |
| Min. Line Spacing: | 0.075 | Color: | Green, Blue, Yellow |
| Legend Color: | White | Type: | Offline |
| Highlight: | Black Oil Drone Circuit Board,White Silkscreen Colour Drone Circuit Board |
||
Product Description
Product Description

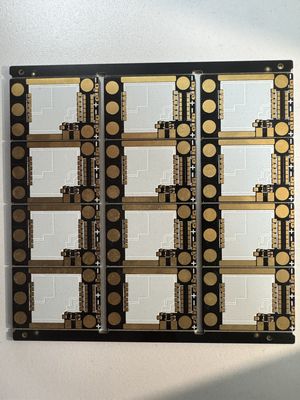

Black oil Drone Circuit Board
A drone circuit board, also known as the flight controller (FC), is the central electronic hub of a drone. Think of it as the drone's brain. This small, sophisticated board contains all the key components that control the drone's flight and functions.
Key Components and Functions
The flight controller integrates several critical parts:
• Processor: A powerful chip that processes all the flight data and executes commands.
• IMU (Inertial Measurement Unit): This includes gyroscopes and accelerometers that detect the drone's orientation, tilt, and movement.
• Barometer: Measures atmospheric pressure to help maintain a stable altitude.
Receiver: A component that receives signals from the remote controller, allowing you to manually pilot the drone.
• Connections: The board has ports to connect other parts like ESCs (Electronic Speed Controllers), GPS modules, cameras, and batteries.
In short, the flight controller processes information from its sensors and your remote control to manage the motors and keep the drone stable and in the air.
Special Processes:
- HDI (High-Density Interconnect) board technology
- Rigid-flex board (used in foldable arm drones)
- High-frequency and high-speed materials (used for high-frequency signal transmission such as 5.8GHz image transmission and radar waves)
| Item | Consumer Drone | Industrial Drone | Military/Special Drone |
|---|---|---|---|
| Board material | Ordinary FR-4 | High TG FR-4 / PI | PTFE / Ceramic substrate / Rogers |
| Number of layers | 4~8 layers | 6~12 layers | 8~20 layers + HDI + blind and buried vias |
| Copper thickness | 1~2oz | 2~3oz | ≥4oz (high-power modules) |
| Surface treatment | OSP/Deposit of gold | Immersion Gold/Hot Air Solder Leveling/Anti-sulfurization Process | Immersion Gold/Immersion Silver/Three-proof Coating |
| Anti-interference ability | Medium | High | Extremely high (EMI/EMC reinforced design) |
| Applicable temperature range | 0~70℃ | -20~85℃ | -40~125℃ or higher |
| Communication functions | Bluetooth/WiFi/Image transmission, etc. | 4G/5G/Data transmission/RTK GPS | Encrypted communication/Radar/Electronic countermeasure links |
