• 8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services
8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services

8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services

Product Details:

Place of Origin: China
Brand Name: xingqiang
Certification: ROHS, CE
Model Number: Varies by goods condition

Payment & Shipping Terms:

Minimum Order Quantity: Sample,1 pc(5 square meters)
Price: NA
Delivery Time: 14-15 work days
Payment Terms: ,T/T,Western Union
Supply Ability: 100000㎡/Month
Get Best Price Chat Now

Detail Information

Product: Multilayer PCB Material: FR4
Layer: 1-30L Min.hole Size: 0.1mm
Pcba: Support Minimum Line Space: 3mil (0.075mm)
Board Size: Custom PCB Pcba Standard: IPC-A-610E
Surface Finishing: HASL/OSP/ENIG Production Request: Gerber Or BOM List
Board Thinkness: 1.6/1.2/1.0/0.8mm Or Customized Solder Ink Color: Blue/Green/Red/White/Black/Yellow
Highlight:

8 Layer High Density Interconnect HDI PCB

,

Thick Copper Circuit Board 8 Layer

,

Buried Gold HDI PCB

Product Description

What Are High-Density Interconnect PCBs?

High-Density Interconnect (HDI) PCBs utilize advanced printed circuit board (PCB) manufacturing technology to achieve higher wiring density, smaller size, and enhanced functional integration. By utilizing microvias, blind vias, buried vias, and more sophisticated circuit designs, HDI significantly improves circuit connectivity per unit area and is widely used in modern electronic devices with extremely high space, performance, and reliability requirements.



HDI PCB Features:

  • High-density interconnection
  • Micro via
  • Blind and buried hole design
  • Multi-level design
  • Fine lines and fine pitch
  • Excellent electrical performance
  •  Highly integrated


Manufacturing process:

  • Microvia technology: One of the key technologies of HDI PCB is microvia technology, which uses laser or mechanical drilling to create tiny holes (gener less than 0.2mm) on the circuit board, and these microvias are used to achieve connections between layers.
  • Multilayer wiring: HDI PCBs typically employ a multilayer design, connecting different circuit layers through blind and buried vias. Interconnection each layer is achieved through microvias, blind vias, or buried vias, which enhances the density and integration of the circuit board.
  • Blind and buried via design: Blind vias are holes that connect only the outer and inner layers, while buried vias are holes that connect the inner layers. The use of these holes can further reduce the volume of the circuit board and increase the wiring density.
  • Surface treatment and assembly: The surface treatment of HDI PCBs requires higher precision and reliability. Common surface treatments include HASL, OSP ,ENIG(Organic Metal Surface Treatment), etc. In addition, the assembly process of HDI PCBs usually requires fine welding technology to ensure the close connection between and the circuit board.
  • High-precision process: In the manufacturing process of HDI PCB, high-precision etching technology is required to ensure the correct manufacturing of fine lines precision holes. At the same time, it is necessary to precisely control variables such as current density, temperature, and pressure to ensure the consistency and high performance.

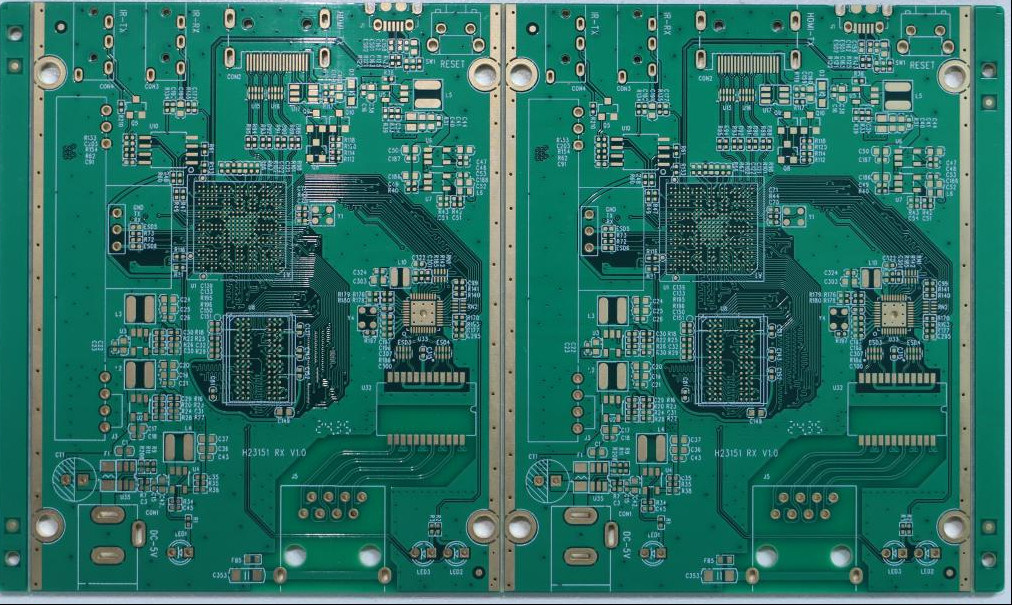

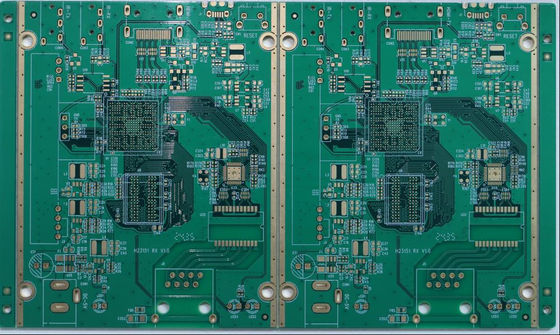

8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services 0

          Factory showcase

8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services 1


            PCB Quality Testing


8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services 2


    Certificates and Honors

8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services 3



8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services 4

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

S
Sergey
Russian Federation Dec 15.2025
This HDI rigid-flex PCB is RoHS and UL compliant, which is critical for our EU market products.

Want to Know more details about this product
I am interested in 8 Layer Buried Gold HDI PCB Board Thick Copper Design Customized Services could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
