4 Layer HDI Soft And Hard Combination PCB Board OSP Treament Multi Level Design

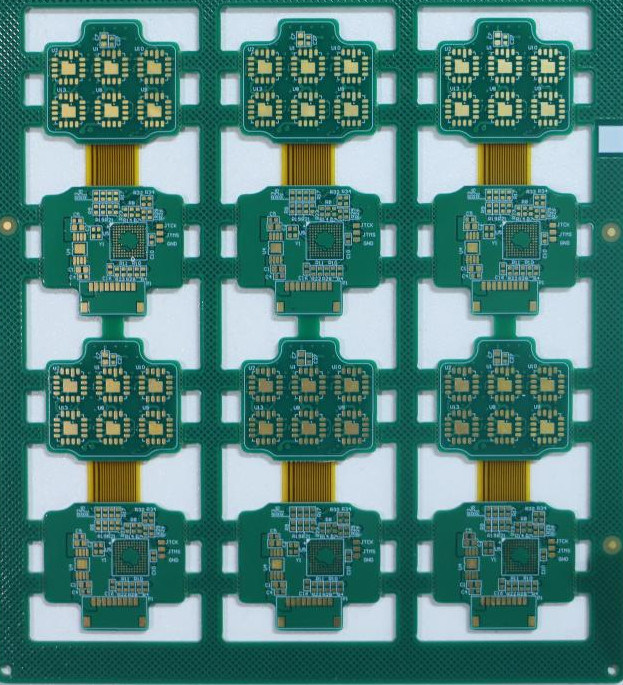

4-layer HDI soft and hard combination board  PCB

 4-layer HDI soft and hard combination board PCB is a PCB that achieves higher circuit density by using thinner lines, smaller apertures and denser wiring design. This PCB technology can achieve more circuit connections in a limited space by adopting more advanced manufacturing processes and design technologies, and is widely used in mobile phones, tablets, computers, equipment, automobiles, electronics and other medical fields.

HDI PCB(High-Density Interconnect Printed Circuit Board)

Advantages of Miniaturization design PCB

1. Extreme Miniaturization & Weight Reduction:

   • Combines 3D Design (Flex) with Microvias (HDI): Achieves the highest possible component and routing density while allowing the circuit to bend, fold, and fit into extremely small, irregular spaces.

   • Eliminates bulky connectors and cables, significantly reducing product size and weight.

2. Superior Electrical Performance:

   • Enhanced Signal Integrity: The HDI features (microvias, finer traces) combined with short, continuous flexible paths minimize signal loss, noise, and impedance mismatch, which is crucial for high-speed digital and RF applications.

3. Highest Reliability in Harsh Environments:

   • Fewer Failure Points: Integration into a single HDI structure eliminates multiple connector interfaces and solder joints.

   • High Durability: The structure provides the strength and component density of HDI with the vibration and shock resistance of flexible materials, ideal for mission-critical or ruggedized electronics.

4. Simplified Assembly:

   • The circuit is fabricated as a single, pre-tested unit, significantly reducing manual assembly time, complexity, and the risk of human error during final product build.

Application Scenarios
1. Consumer Electronics (Miniaturization Focus):
• Smartphones & Tablets: Enables ultra-thin designs and allows high-density component mounting (e.g., processor, memory) in minimal space.
• Wearable Devices: Crucial for fitness trackers, smartwatches, and smart glasses that require complex functionality in a small, contoured, and often dynamic form factor.
• Digital Cameras & Camcorders: Used to connect moving parts (e.g., lens mechanisms, swivel screens) with the main rigid board while saving significant space.
2. Medical Devices (Reliability & Size Focus):
• Implantable Devices: Such as pacemakers and cochlear implants, where high reliability, extreme miniaturization, and biocompatibility are essential.
• Portable Diagnostic/Monitoring Equipment: Handheld ultrasound devices, monitors, and hearing aids require dense circuitry in a compact, durable package.
3. Aerospace & Defense (Ruggedness & Weight Focus):
• Avionics and Flight Control Systems: Used in cockpit displays and control modules where circuits must withstand high vibration, shock, and extreme temperatures while meeting strict weight reduction goals.
• Satellite and Spacecraft Electronics: Essential for maximizing functionality while minimizing weight and surviving harsh environmental conditions (vacuum, temperature extremes, radiation).
• Military Communications & Guidance Systems: Provides durable, reliable interconnections for equipment like handheld radios, missile guidance, and surveillance gear.
4. Automotive Electronics (Vibration & Complexity Focus):
• Advanced Driver-Assistance Systems (ADAS): Used in sensor modules, radar, and Lidar units.
• Infotainment & Dashboard Systems: Provides reliable interconnections that must curve and fold to fit behind complex dashboard geometries while resisting vibration.
5. Industrial & Robotics:
• Articulating Robotics: Used in the "joints" or moving arms of industrial robots, where the circuit must withstand millions of flexing cycles without failure.
• High-Density Sensor Arrays: For industrial automation and control systems that require dense components and reliable connections in tight, machine-mounted locations.
