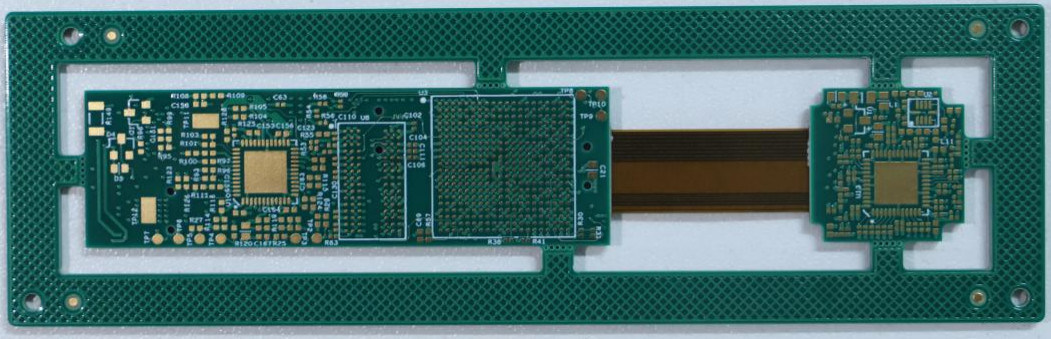

Rigid-Flexible Printed Circuit Board for Stable Performance Customized Service
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS,CE |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Min Hole Size: | 0.1mm | Struction: | 6 Layer |
|---|---|---|---|
| Min Line Width: | 3mil | Type: | Pcb Design |
| Pcb Size: | Customized | Board Finished Thickness: | 0.2-5.0mm |
| Material: | FR4 | Quote Requirement: | Gerber File And Bom List |
| Highlight: | custom rigid flex PCB,stable performance PCB,flexible printed circuit board |
||
Product Description
Product Description:
When it comes to cutting-edge technology and innovative design, our Flexible Rigid Circuit Boards are the perfect solution for your advanced electronic applications. Our Rigid-Flex Circuit Boards offer a unique combination of flexibility and rigidity, making them ideal for a wide range of industries and applications.Our Rigid-Flex Circuit Boards are customized to meet your specific requirements, ensuring that you get a product that perfectly fits your needs. With a customized PCB size, you can be confident that our boards will seamlessly integrate into your electronic devices, providing reliable performance and durability.When it comes to requesting a quote for our Rigid-Flex Circuit Boards, we require the submission of Gerber files and a Bill of Materials (BOM) list. These essential documents provide us with the necessary information to accurately assess your project requirements and provide you with a customized quote that meets your budget and timeline.Our Rigid-Flex Circuit Boards feature a 6-layer structure, offering a perfect balance of flexibility and rigidity. This multi-layer design allows for efficient routing of complex circuits, maximizing the functionality and performance of your electronic devices.
Advandtages of Rigid-Flexible PCB :
1. Integrated Design & Reliability
Advantage: Eliminates connectors/cables between rigid boards, replacing them with seamless flex transitions.
- Impact: Reduces failure points by 90% vs. wired assemblies (per IPC-6013), enhancing reliability in high-stress environments (e.g., aerospace vibration, medical device flexing).
2. Space/Weight Optimization
Advantage: Enables ultra-compact 3D packaging.
- Impact: Cuts weight by 30-50% and volume by 40-60% vs. traditional rigid PCBs with connectors—critical for drones, wearables, and implantable medical tech.
3. Dynamic Mechanical Performance
Advantage: Engineered for repeated bending (20k–200k+ flex cycles).
- Impact: Supports folding mechanisms (e.g., smartphones, military foldable displays) and moving parts (robotic arms, auto sensors) without fatigue.
4. Enhanced Signal Integrity
Advantage: Minimizes signal loss/EMI through continuous impedance-controlled traces.
- Impact: Enables high-speed data transfer (>10 Gbps) for 5G devices, ADAS systems, and high-frequency test equipment.
Support and Services:
Our dedicated team of experts is available to provide technical support and services for the Rigid Flex PCB product. Whether you have questions about product specifications, installation, or troubleshooting, we are here to assist you every step of the way.
Our technical support services include:
- Guidance on product selection and customization
- Assistance with design considerations
- Support with testing and validation
- Resolution of technical issues and challenges
For any technical inquiries or support requests related to the Rigid Flex PCB product, please don't hesitate to reach out to our team.
