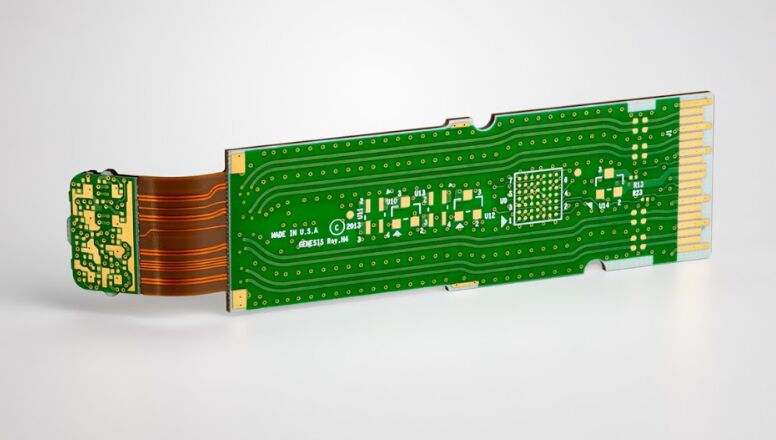

Custom Rigid and Flexible PCB Impedance Controlled & Low Signal Loss for Wearable Devices
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Outer Carton |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Features: | Durable, Flexible And Long Service Life | Product Name: | Custom Rigid And Flexible PCB |
|---|---|---|---|
| Min Line Width: | 3mil | Outline Tolerance: | +/-0.1mm |
| Copper Overall: | 0.5-5oz | Board Thickness: | 0.2-5.0Mm |
| Min.hole Size: | 0.1Mm | Custom Layer: | 1-30 Layers |
| Max Board Size: | 528*600mm | Surface Treatment: | HASL/OSP/ENIG |
| Profiling Punching: | Routing, V-CUT, Beveling | Price: | Based On Gerber Or BOM List |
| Highlight: | custom rigid flex PCB for wearables,impedance controlled flexible PCB,low signal loss rigid PCB |
||
Product Description
High Reliability Rigid-Flex PCB with Vibration Resistance & OEM Support
This custom rigid-flex PCB combines rigid circuit boards and flexible cables to save space, ensure stable signal transmission, and resist vibration. Ideal for embedded systems, mini PCs, industrial devices, and compact electronic projects. We support OEM/ODM customization with precise impedance control, high-quality materials, and reliable performance for both prototyping and mass production.Technical Parameters:
| PCB Type | Rigid and Flexible PCB |
| Surface Treatment | HASL/OSP/ENIG |
| Panel Size | Customized |
| BGA Ball Pitch | Support |
| Origins | China |
| Hole Position Tolerance | ±0.1mm |
| Flexibility | Yes |
| Minimum Hole Size | 0.1mm |
| Normal Layer | 2L/4L/6L/8L or Customized |
| Solder Mask Color | Green, Black, White, Blue, Red,Yellow |
FAQ:
Q1: What brand manufactures the Rigid Flex PCB?
A1: The Rigid Flex PCB is manufactured by Xingqiang.
Q2: Can the Rigid Flex PCB be customized according to my model?
A2: Yes, our rigid-flex PCBs are fully customizable based on your model, drawings, or specifications. We support custom size, layer count, FPC length, impedance control, and interface design to meet your project requirements.
Q3: What certifications does the Xingqiang Rigid Flex PCB have?
A3: It is certified with ISO 9001, ROHS, UL, and IATF 16949 (automotive standard).
Q4: What is the minimum order quantity for the Rigid Flex PCB?
A4: The minimum order quantity is a sample or 1 piece, with a minimum of 5 square meters.
Q5: What payment methods are accepted for purchasing the Rigid Flex PCB?
A5: Payment can be made via T/T (Telegraphic Transfer) or Western Union.
Factory showcase
PCB Quality Testing
Certificates and Honors
