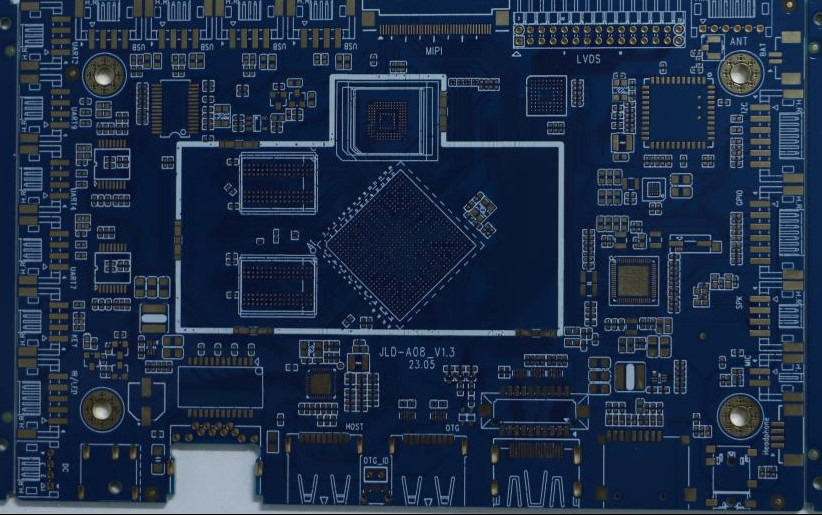

Blue Oil High Density Interconnect PCB Suitable for Advanced Circuit Designs
Brand Name:
Xingqiang
Certification:
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based on Gerber Files
Standard Packaging:
Packed As Per Customer
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
blue oil high density interconnect PCB
,customized high density interconnect PCB
,advanced circuit design PCB
Product Name:
High Density Interconnect PCB
Material:
High Tg FR-4
Min.Hole Size:
0.1mm
Min.Line Width:
0.075mm
Quotation Document:
Gerber Files
Testing Standard:
100% E-Test
Minimum Line Space:
3mil (0.075mm)
Surface Finishing:
OSP/ENIG/Electroplated Gold
Custom Layers:
2/4/6/8/10 Layers
Board Thinkness:
1.2/1.6/1.0/0.8mm Or Customized
Product Description
HDI PCBs for Innovative Consumer Electronics:
HDI PCB (High-Density Interconnect PCB) is a advanced circuit board with dense wiring, microvias, and thin traces. Ideal for compact, high-performance devices (smartphones, IoT, medical gear), it enables miniaturization, faster signal transmission, and enhanced reliability vs. standard PCBs.Advantages of HDI PCBs Compared to Other Circuit Boards:
• Advantages of HDI PCB vs. Traditional PCB:1. Higher component density & miniaturization for compact devices.
2. Faster signal transmission with shorter trace lengths, reducing interference.
3. Enhanced reliability via microvias and optimized layer structures.
4. Supports complex designs (e.g., BGA, CSP) for high-performance electronics.
• Disadvantages of HDI PCB vs. Traditional PCB:
1. Higher manufacturing cost due to advanced processes (laser drilling, precise imaging).
2. More complex production workflow, leading to longer lead times.
3. stricter design requirements and higher technical expertise needed.
4. Limited availability of low-volume customizations compared to standard PCBs.
Customized services:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
• Normally Gerber Information Include:
•PCB Type,
•Board thickness,
•Ink color,
•Surface treatment process ect,.
