Product Details:

Place of Origin: China
Brand Name: xingqiang
Certification: ROHS, CE
Model Number: Varies by goods condition

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Price: NA
Delivery Time: 14-15 work days
Payment Terms: ,T/T,Western Union
Supply Ability: 3000㎡
Get Best Price Chat Now

Detail Information

Min. Solder Mask Clearance: 0.1mm Pcba Standard: IPC-A-610E
Aspect Ratio: 20:1 Board Thinkness: 1.2mm
Minimum Line Space: 3mil (0.075mm) Surface Finishing: HASL/OSP/ENIG
Material: FR4 Product: Print Circuit Board
Highlight:

4 Layer High Density Interconnect PCB

,

HDI Flexible PCB Miniaturization Design

Product Description

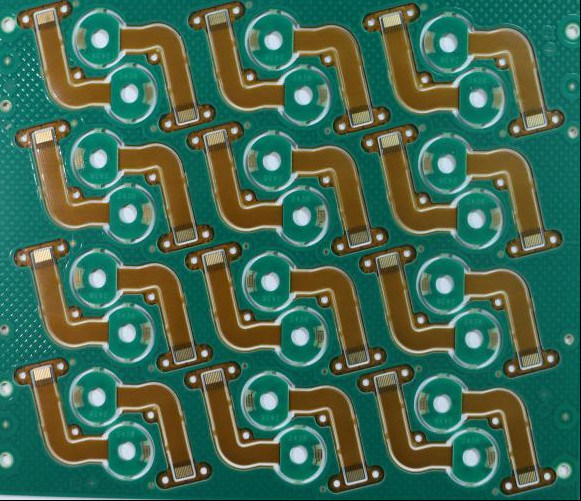

4-layer HDI flexible  PCB


Advantages of Miniaturization design PCB:

  • Miniaturization design
  • Higher circuit density
  • Better electrical performance
  • Improve heat dissipation performance

product  Description:


   4-layer HDI flexible PCB  is a PCB that achieves higher circuit density by using thinner lines, smaller apertures and denser wiring design. This PCB technology can achieve more circuit connections in a limited space by adopting more advanced manufacturing processes and design technologies, and is widely used in mobile phones, tablets, computers, equipment, automobiles, electronics and other medical fields.



product Features:

  • High-density interconnection
  • Micro via
  • Blind and buried hole design
  • Multi-level design
  • Fine lines and fine pitch
  • Excellent electrical performance
  •  Highly integrated


Manufacturing process:

  • Multilayer wiring: HDI PCBs typically employ a multilayer design, connecting different circuit layers through blind and buried vias. Interconnection each layer is achieved through microvias, blind vias, or buried vias, which enhances the density and integration of the circuit board.
  • Blind and buried via design: Blind vias are holes that connect only the outer and inner layers, while buried vias are holes that connect the inner layers. The use of these holes can further reduce the volume of the circuit board and increase the wiring density.
  • Surface treatment and assembly: The surface treatment of HDI PCBs requires higher precision and reliability. Common surface treatments include gold plating, silver pl, OSP (Organic Metal Surface Treatment), etc. In addition, the assembly process of HDI PCBs usually requires fine welding technology to ensure the close connection between and the circuit board.
  • High-precision process: In the manufacturing process of HDI PCB, high-precision etching technology is required to ensure the correct manufacturing of fine lines precision holes. At the same time, it is necessary to precisely control variables such as current density, temperature, and pressure to ensure the consistency and high performance.
