4 Layer Blue Oil Rigid Flex PCB Soft Hard Bonding PCB Printed Circuit Board
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 15-16 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Outline Tolerance: | ±0.1mm | Profiling Punching: | Routing, V-CUT, Beveling |
|---|---|---|---|
| Usage: | Electronics Product | Copper Thickness: | 1-3oz |
| Pcb: | Rigid Flex PCB | Minimum Hole Size: | 0.1mm |
| Legend Color: | White | Sheet Thickness: | 0.2-1.6mm |
| Solder Mask Colo: | Green,black,white,blue,yellow,red | Finish Treatment: | Immerstion Gold |
| Quick Turn: | Yes | Finished Copper: | 1OZ |
| Rigid Layers: | 4 | Oem Service: | Yes |
| Highlight: | Blue Oil Rigid Flex PCB Board,Soft Hard Bonding PCB Board |
||
Product Description

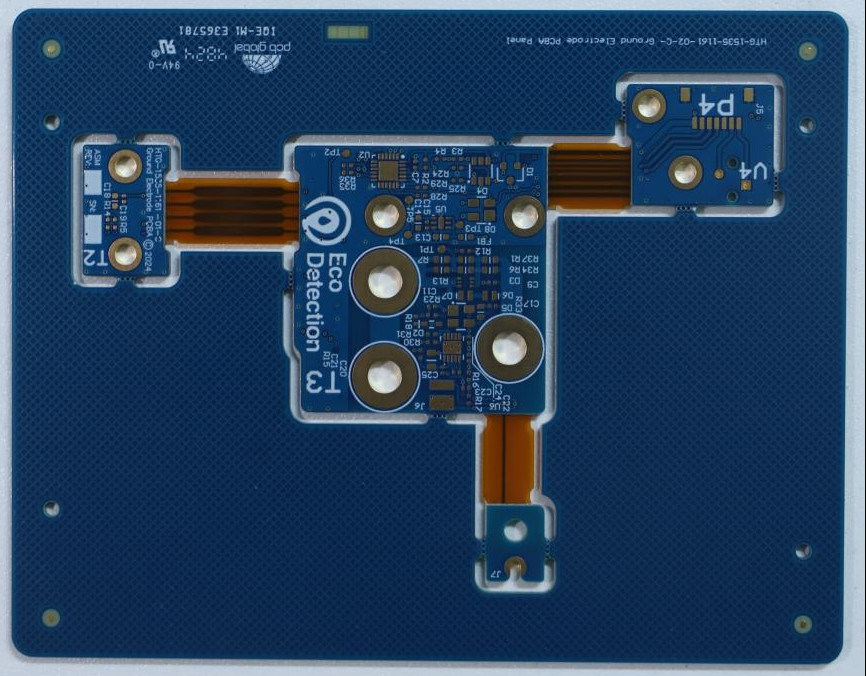

4-layer blue oil soft hard bonding board PCB
product Description:
This 4-layer flex-rigid PCB, featuring a striking blue solder mask, combines exceptional performance with unparalleled design versatility. It's the perfect solution for space-constrained, high-reliability electronic applications that demand both durability and flexibility.Structurally, the PCB showcases a meticulously engineered 4-layer architecture. The rigid sections, constructed from high-quality FR-4 material, offer robust mechanical stability, ensuring durability under various operating conditions. Meanwhile, the flexible segments are crafted from premium polyimide (PI) film, providing outstanding bendability and enabling effortless 3D integration within compact, space-constrained environments. The blue solder mask coating not only delivers excellent insulation and chemical resistance but also offers high-contrast visibility, streamlining the inspection process during both manufacturing and field maintenance for enhanced quality control.
product Features:
- Rigidity and flexibility combined
- Space saving
- High-density wiring
- Good seismic and anti-interference performance
- Improve the reliability of the system
- Design flexibility
Manufacturing process:
- Design & Material Specification:The design phase requires clear delineation of rigid and flexible zones, paired with selection of appropriate substrate materials (e.g., FR4 for rigidity, polyimide for flexibility) and compatible processes to ensure seamless integration of both segments.
- PCB Lamination: Fabrication of flex-rigid structures involves precision lamination of rigid and flexible layers, typically via controlled hot pressing and adhesive bonding, to consolidate multi-material circuit layers into a unified board.
- Etching & Drilling: Post-lamination, the substrate undergoes photolithographic patterning and chemical etching to form precise circuit traces. Subsequent drilling (including microvias) enables component mounting and interlayer electrical connectivity.
- Surface Finishing: Protective surface treatments—such as gold plating, tinning, or organic solderability preservatives (OSP)—are applied to enhance solderability, prevent oxidation, and ensure long-term environmental resilience.
- Assembly & Validation: Post-fabrication, the board undergoes component placement (SMT or through-hole) and soldering, followed by rigorous electrical testing to verify functional performance and compliance with design specifications.
