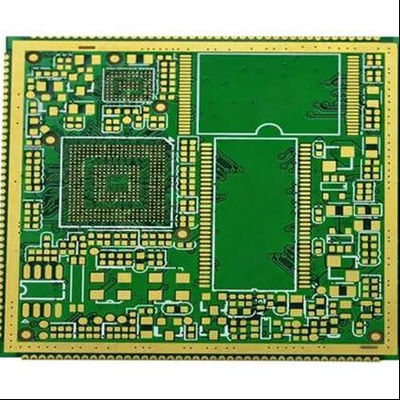

Custom High-Frequency PCB with PTFE Material Fast Delivery & Quality Guarantee

Product Details:

Place of Origin: China
Brand Name: xingqiang
Certification: ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Model Number: As per Customer's Model

Payment & Shipping Terms:

Minimum Order Quantity: Sample,1 pc(5 square meters)
Price: Based on Gerber Files
Packaging Details: Vacuum Sealed Packaging
Delivery Time: NA
Payment Terms: ,T/T,Western Union
Supply Ability: 100000㎡/Month
Get Best Price Chat Now

Detail Information

Pcb Type: High Frequency PCB Quality: 100% E-Test
Testing Method: Flying Probe Solder Mask: Yellow+green
Customizable Files: Gerber Files Dielectric Constant: 3.0
Raw Material: PTFE/Rogers/Isola Pcb Thickness: 1.6mm Or Customized
Regular Layer: 2/4/6/8/10L Or Tailored Price: Based On Gerber Information
Silkscreen Colour: White/based On Your Request Pcb Surface Finishing: ENIG/Hard Gold Plating/ENEPIG
Highlight:

1.6mm Thickness High Frequency PCB

,

High Frequency Multilayer Circuit Board

,

Multilayer Circuit Board For Electronic Devices

Product Description

High-Frequency PCBs for 5G, Radar, Satellite & High-Speed Digital Circuits:

Our High-Frequency Printed Circuit Board (PCB) is precision-manufactured for demanding applications in RF, microwave, 5G communication, radar systems, satellite technology, and high-speed digital circuits. Designed to minimize signal loss, maintain impedance integrity, and ensure stable performance at GHz-level frequencies, this PCB is ideal for engineers and manufacturers in advanced electronic fields.Whether you're developing 5G base stations, automotive radar, or high-speed data transmission modules, our high-frequency PCB delivers exceptional dielectric performance, low insertion loss, and consistent signal integrity.




Brief Description of HDI PCB Advantages:

1.High Wiring Density: Achieved through the use of Microvias (tiny, laser-drilled holes) and finer lines/spaces. This allows for significantly more circuitry in a smaller area, maximizing space utilization.
2. Superior Electrical Performance: The shorter trace lengths and optimized stack-up inherent in HDI designs lead to better signal integrity, reduced signal latency, and improved impedance control, which is crucial for high-speed digital circuits.
3. Miniaturization and Weight Reduction: By increasing integration, HDI boards enable the design of smaller, lighter, and thinner final products, making them ideal for smartphones, wearables, and other portable devices.
4. Support for Advanced Packaging: They can accommodate components with very fine pitch, such as BGAs (Ball Grid Arrays) and CSPs (Chip-Scale Packages), often using Via-in-Pad technology for better component mounting reliability.



Ordering Information:
1. Gerber files (RS-274X),PCB thickness, ink color, surface treatment process.
2. BOM (if PCBA or SMT process is needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)

We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.



Manufacturing process:

  • Design Phase: During the design phase, specialized PCB design software is required to take into account the characteristics of high-frequency signal transmission, while conducting precise impedance control and signal integrity analysis.
  • Material selection and manufacturing: High-frequency PCBs typically use special high-frequency materials such as PTFE, ceramics, or LCP. These materials require processing during manufacturing to ensure stable electrical performance.
  • Etching and pattern transfer: The circuit pattern of high-frequency PCB is transferred to the copper layer through photolithography and etching technology. In this, the width and spacing of the lines need to be strictly controlled to ensure the stability of signal transmission.
  • Via and interlayer connection: The via design of high-frequency PCBs requires great precision, using tiny vias and appropriate plating processes to ensure the transmission of signals.
  • Assembly and testing: After the completion of the PCB manufacturing, the components are installed and soldered. High-frequency PCBs need to undergo strict testing to their performance under high-frequency working conditions, including signal integrity, impedance control, and thermal management, etc.
