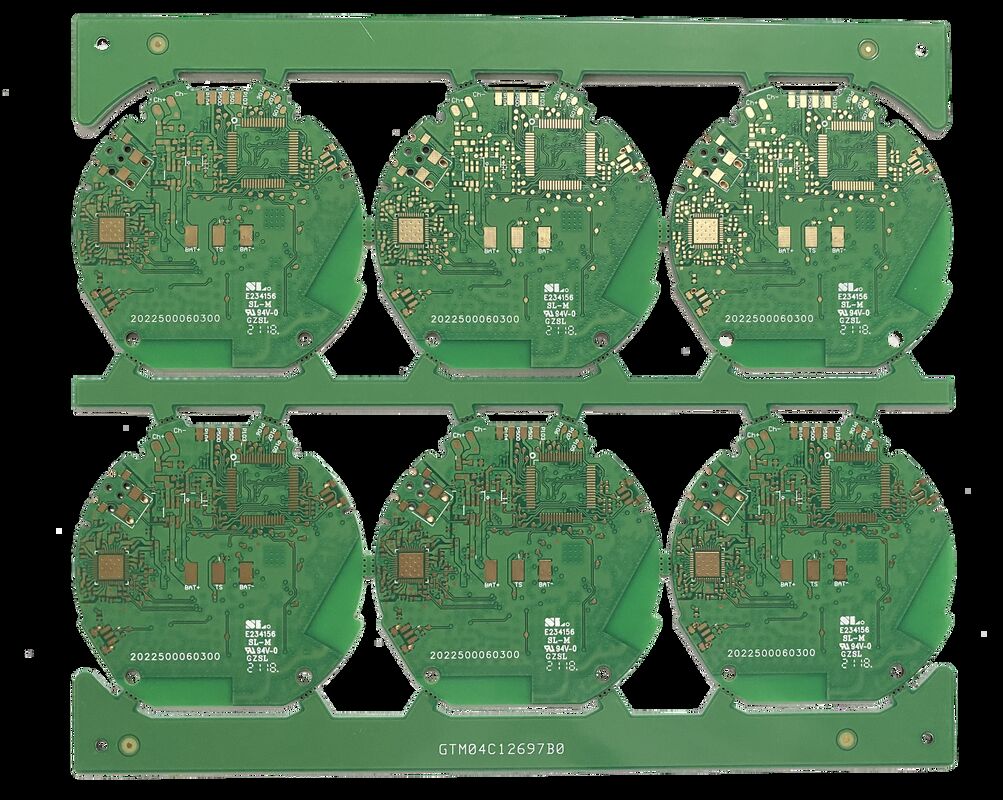

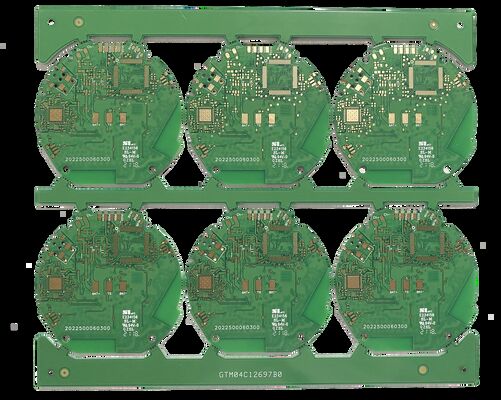

High Tg FR-4 High Frequency PCB Low Resistance for Fitness Trackers Device OEM/ODM
Product Details:
| Brand Name: | High Frequency PCB |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Type: | High-Frequency PCB | Min Hole: | 0.1mm |
|---|---|---|---|
| Layers: | 1-30 Layers | Pcb Thickness: | 0.2-5.0mm |
| Max.Board Size: | 528*600mm | Quality: | IPC(class II Or III） |
| Production Files: | Gerber Or BOM | Silkscreen: | White,Black,Yellow,Red |
| Marterial: | Rogers/High Frequency FR4 | Ink Color: | Green,Red,White,Black,Blue,Yellow |
Product Description
Premium Material Integration:High-Frequency PCBs with Rogers/FR4
The High Frequency PCB is a specialized printed circuit board designed to meet the demanding requirements of high-frequency signal transmission applications. Utilizing premium materials such as Rogers and FR4, this PCB ensures exceptional performance in environments where signal integrity and minimal loss are critical. The combination of these materials provides a robust platform that supports high-frequency substrate materials, making the board suitable for advanced communication devices, radar systems, and other high-speed electronic applications.
Applications:
• Industrial IoT: High-speed industrial sensors, automated robotics controllers, and smart factory wireless gateways.
• Security & Surveillance: Microwave motion detectors, high-definition wireless security cameras, and body-worn scanners.
• Test & Measurement: Oscilloscopes, spectrum analyzers, and automated test equipment (ATE) for semiconductor chips.
• Radio & Broadcasting: Digital radio transmitters, television broadcast equipment, and power amplifiers.
• Energy Management: Smart grid communication modules and high-frequency power inverters for renewable energy.
Customization:
Please send us your:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
What does Gerber data include?
Gerber data and fabrication requirements include product thickness, ink color, surface treatment process. If SMT processing is required, component BOM and tag drawing are required.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
