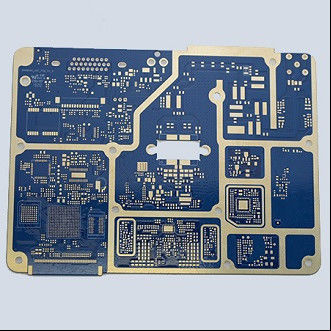

Factory Direct Equivalent High Frequency PCB Low Cost RF Circuit Fabrication
Product Details:
| Brand Name: | High Frequency PCB |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Custom PCB Type: | High Frequency PCB | PCBA Support: | Yes |
|---|---|---|---|
| Minimum Hole Size: | 0.1Mm | Oem/Odm: | Support |
| Layer: | 1-30 Layer | Testing: | 100% E-Test |
| PCB Standard: | IPC Class 2 | Max.Board Size: | 528*600mm |
| Normal Panel Thickness: | 1.6/1.2/1.0/0.8Mm | Price: | Based On Gerber Files |
| Finish: | Immersion Gold (ENIG) | Solder Mask Color: | Green/Red/Blue/Black/White/Yellow |
Product Description
Premium High Frequency PCB for Advanced Electronic Devices:
The High Frequency PCB is a specialized printed circuit board designed to meet the demanding requirements of high-speed and high-frequency electronic applications. Classified under IPC 2 standards, this PCB offers a perfect balance of performance, reliability, and cost-effectiveness, making it an ideal choice for a wide range of advanced electronic devices. It is engineered to support high-frequency signal transmission, ensuring minimal signal loss, reduced electromagnetic interference, and superior overall signal integrity.
Customized PCB Production Process:
1.Pre-production: DFM analysis, Gerber file optimization, material selection per specs
2. Core manufacturing: Layer fabrication, lamination, drilling, plating, solder mask & surface finishing
3. Testing: Electrical performance/impedance test, AOI, reliability verification
4. Final: Inspection, vacuum packaging & delivery
FAQ:
1.Q:How many layers can your circuit boards provide?
A:We typically provide 1-30 layer boards, and in special cases, we can stack more layers.
2. Q:Do your circuit boards support customization?
A:Yes, we support customized designs. You can send us your Gerber files and BOM list, and we will provide you with an accurate quote based on the information and market conditions.
3. Q:What do Gerber files typically contain?
A:Normally Gerber files Include:PCB Types,Product thickness, Ink color, Surface treatment process and If SMT processing is required, component BOM and tag drawing are also required.
4. Q:What is your minimum order quantity for PCB boards?
A:Our minimum order quantity is 1 piece(5 square meters),the larger the quantity, the bigger the discount.
5. Q:Do you have relevant certification certificates to support this?
A:We hold numerous important certifications, including ISO, UL, CE, and RoHS. All products undergo rigorous quality testing.
6. Q:What payment method do you usually use?
A:For small orders, samples, or urgent payments, we accept Western Union. For large orders, we recommend T/T, which ensures the safety of both parties.
