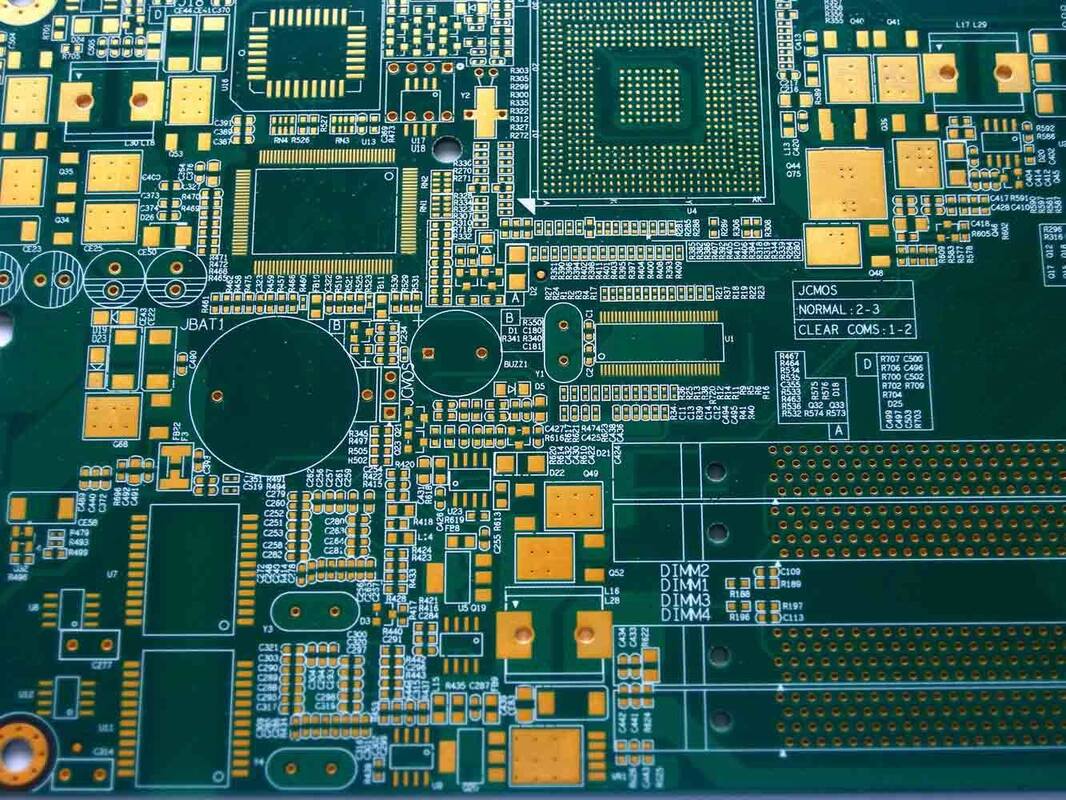

Custom ENIG High Frequency Board for High-Speed Signal Transmission ROHS/UL Certified
Product Details:
| Brand Name: | High Frequency PCB |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Name: | High Frequency PCB | Min Line Spacing: | 3mil |
|---|---|---|---|
| Soldermask: | Green | Min.hole Size: | 0.1mm |
| Normal DK: | ≤3.0 | Surface Finish: | ENIG |
| Layer Count: | 1~30L | Max.Board Size: | 528*600mm |
| Material: | PTFE/Rogers/Isola | Fabrication: | Gerber Files Or BOM List |
| Thickness: | 1.6/1.2/1.0/0.8mm Or Customized | Supplier Type: | Factory PCB / PCBA Manufacturer |
Product Description
IPC 2 Standard High-Frequency PCB:
A high-frequency PCB is a specialized printed circuit board compliant with IPC 2 standards, engineered for high-speed, high-frequency electronic applications. It ensures minimal signal loss, reduced electromagnetic interference, and superior signal integrity, balancing performance, reliability and cost-effectiveness for advanced electronic devices.
High-Frequency PCB Core Features:
| Feature Category | Specific Characteristics |
| Signal Performance | Minimal high-frequency signal loss; superior signal integrity; reduced signal distortion |
| EMI Resistance | Strong anti-electromagnetic interference capability; stable signal transmission in complex environments |
| Industry Compliance | Compliant with IPC 2 standards; meets high-speed electronic application requirements |
| Cost & Reliability | Balanced cost-effectiveness; long-term stable performance; ideal for mass production |
| Application Adaptability | Supports high-frequency/high-speed scenarios; compatible with advanced electronic devices |
FAQ:
1.Q:What kind of circuit board is this product?
A:A high-frequency PCB is a specialized circuit board for high-speed applications with minimal signal loss and low EMI.
2.Q:How many layers can your circuit boards provide?
A:We typically provide 1-30 layer boards, and in special cases, we can stack more layers.
3. Q:Do your circuit boards support customization?
A:Yes, we support customized designs. You can send us your Gerber files and BOM list, and we will provide you with an accurate quote based on the information and market conditions.
4. Q:What do Gerber files typically contain?
A:Normally Gerber files Include:PCB Types,Product thickness, Ink color, Surface treatment process and If SMT processing is required, component BOM and tag drawing are also required.
5. Q:What is your minimum order quantity for PCB boards?
A:Our minimum order quantity is 1 piece(5 square meters),the larger the quantity, the bigger the discount.
6. Q:Do you have relevant certification certificates to support this?
A:We hold numerous important certifications, including ISO, UL, CE, and RoHS. All products undergo rigorous quality testing.
7. Q:What payment method do you usually use?
A:For small orders, samples, or urgent payments, we accept Western Union. For large orders, we recommend T/T, which ensures the safety of both parties.
