8 Layer Rigid Flex PCB HASL Surface Treament FR4 Material Customized Size
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS,CE |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Quote Requirement: | Gerber File And Bom List | Copper Overall: | 0.5-5oz |
|---|---|---|---|
| Pcb Test: | Flying Probe Test, E-test, Etc. | Type: | Pcb Design |
| Pcb Size: | Customized | Min Hole Size: | 0.1mm |
| Board Finished: | HASL | Struction: | 8 Layer |
| Highlight: | 8 layer rigid flex PCB,HASL surface treatment PCB,custom size FR4 PCB |
||
Product Description

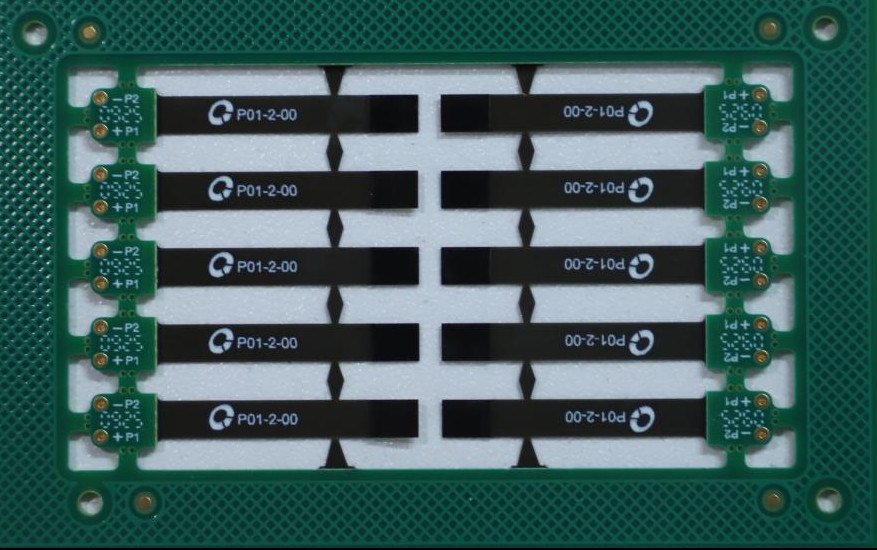

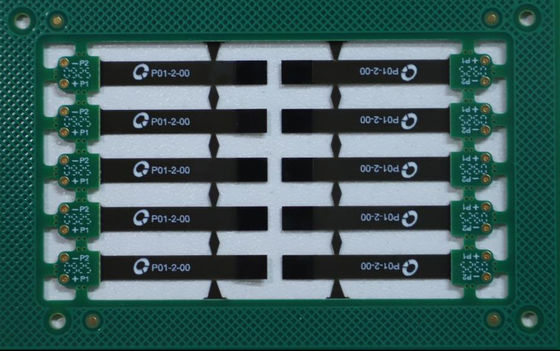

8 Layer HASL Process Rigid Flex PCB :
An 8-layer HASL (Hot Air Solder Leveling) Rigid-Flex PCB is an advanced hybrid circuit board integrating eight conductive layers within a unified structure of rigid and flexible polyimide substrates. It leverages rigid sections for component mounting and complex circuitry, interconnected by dynamic flexible layers that enable 3D folding and bending. The HASL surface finish—applied by coating exposed copper with molten tin-lead or lead-free alloy followed by hot air leveling—provides cost-effective solderability, oxidation resistance, and robust shelf life. This architecture delivers ultra-high density (enabling complex HDI designs), exceptional mechanical resilience under repeated stress, space/weight savings exceeding 50% versus traditional rigid boards with connectors, and enhanced signal integrity in high-frequency applications.
Features:
| High Density | The multilayer design allows for high component density, making it suitable for complex electronic systems. |
| Reliability | The combination of rigid and flexible sections enhances durability and reliability, especially in dynamic environments. |
| Thermal Management | Multiple layers can be designed to improve heat dissipation and manage thermal performance. |
| Solderability | The tin-spray finish ensures good solderability and protects the copper traces from oxidation. |
Support and Services:
Our team of experts is dedicated to providing comprehensive technical support and services for our Rigid Flex PCB product. Whether you have questions about design specifications, manufacturing processes, or troubleshooting issues, we are here to assist you every step of the way. Our goal is to ensure that your Rigid Flex PCBs meet your expectations and requirements, delivering high-quality performance for your applications.
