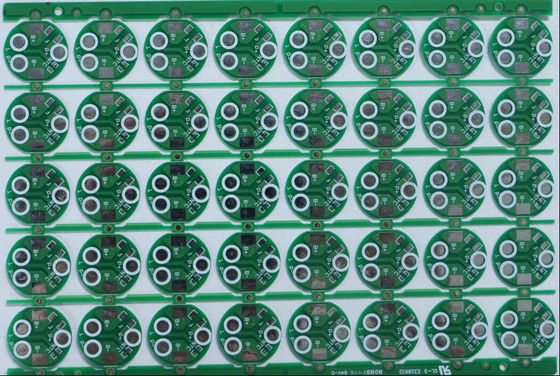

OSP 4 layer printed circuit board PCB Board For Electronic Products
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 7-10 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Solder Mask: | White/black | Final Copper Thickness: | 1 OZ |
|---|---|---|---|
| Board Thinkness: | 1.2mm | Min. Solder Mask Clearance Mask Bridge: | 0.1mm |
| Standard: | IPC-A-610E | Materila: | FR4 |
| Aspect Ratio: | 20:1 | Surface Finishing: | HASL/OSP/ENIG |
| Highlight: | OSP four layer printed circuit board,OSP PCB Board For Electronic Products |
||
Product Description
Product Description
OSP Halogen-Free Flame Retardant 4-Layer Board PCB
This is a specialized four-layer printed circuit board (PCB) that uses an Organic Solderability Preservative (OSP) surface finish and is made from halogen-free flame retardant materials. This combination of features makes the board environmentally friendly, safe, and reliable for a variety of electronic applications, particularly where environmental regulations and safety standards are a priority.
Product Characteristics
•Halogen-Free Material: Unlike traditional PCBs that use halogenated flame retardants (like bromine), this board uses a non-halogenated alternative. This is a key feature for environmental and health reasons, as halogens can release toxic fumes when burned or incinerated.
•4-Layer Stack-up: The four layers allow for more complex circuit designs and better signal integrity than a two-layer board. The additional inner layers can be used for dedicated power and ground planes, which helps to reduce electromagnetic interference (EMI) and improve electrical performance.
•OSP Surface Finish: The OSP finish is a thin, organic coating that protects the exposed copper from oxidation until the soldering process. It is a very environmentally friendly and cost-effective alternative to other finishes like HASL or ENIG. It provides a flat, uniform surface, which is ideal for fine pitch components.
•Flame Retardant: The material is designed to prevent the spread of fire. In the event of a short circuit or other failure that could cause a fire, the board material will self-extinguish.
Main Application Scenarios
•Consumer Electronics: Devices like laptops, mobile phones, and tablets where environmental standards and safety are important factors.
•Networking and Communication Equipment: Routers, switches, and servers, which require high-performance, multi-layered PCBs that meet industry safety standards.
•Medical Devices: Equipment that needs to be both highly reliable and compliant with strict safety regulations.
•LED Lighting: Used in LED drivers and control boards where heat and fire safety are crucial concerns.
