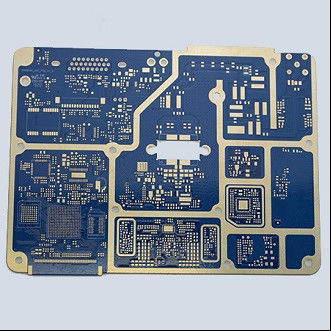

OEM Blue Oil Sinking Gold Rigid Printed Circuit Board Double Sided PCB Board

Double-sided blue oil sinking gold craftsmanship

product  Description:

    Double-sided PCB, also known as double-sided printed circuit board, is a printed circuit board (PCB) with two-sided circuit connections. In this kind of PCB, the electronic components and circuit layout can be arranged on both sides of the PCB respectively, and the electrical connection of the circuits on both sides is achieved through vias (Vias). This structure greatly increases the functional density of the circuit board, allowing it to implement more circuit connections in a relatively small area.

product Features:

• Two-sided wiring
• through hole connection
• component placement
• Higher circuit density
• Increase the wiring space

• Improve the circuit functional density
• The cost is relatively low
• Good electrical performance
• Adapt to high integration requirements

Manufacturing process:

• Design and layout:Firstly, the PCB design is carried out through circuit design software, with wiring and component placement on both sides, and the position type of vias are planned at the same time.
• Drilling and electroplating: Drilling is carried out according to the design requirements, and electroplating is performed after drilling to form a via the circuits on both sides.
• Etching: Remove the excess copper foil to form the desired circuit pattern.
• Assembly and welding: After the components are installed, welding treatment is carried out, which can be done using surface-mount technology (SMT) or through technology (THT).
