IPC-A-610E Standard Rigid PCB Board 12 Layer With 100% E Test Copper
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 14-15 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Light Angle: | 120deg | Silkscreen: | White |
|---|---|---|---|
| Final Copper: | 1 OZ | Silkscreen Color: | White, Black, Yellow |
| Application: | Medicial Device | Solder Mast: | Customized |
| Hole Tolerance: | PTH ±0.075, NTPH ±0.05 | Lead Free Compatible: | Yes |
| Solder Mask: | Green | Number Of Layers: | 12-Layer |
| Surface Finish: | HASL/OSP/ENIG | Controlled Impedance: | +/-5% |
| Highlight: | IPC-A-610E Standard Rigid PCB Board,Rigid PCB Board 12 Layer |
||
Product Description
Product Description

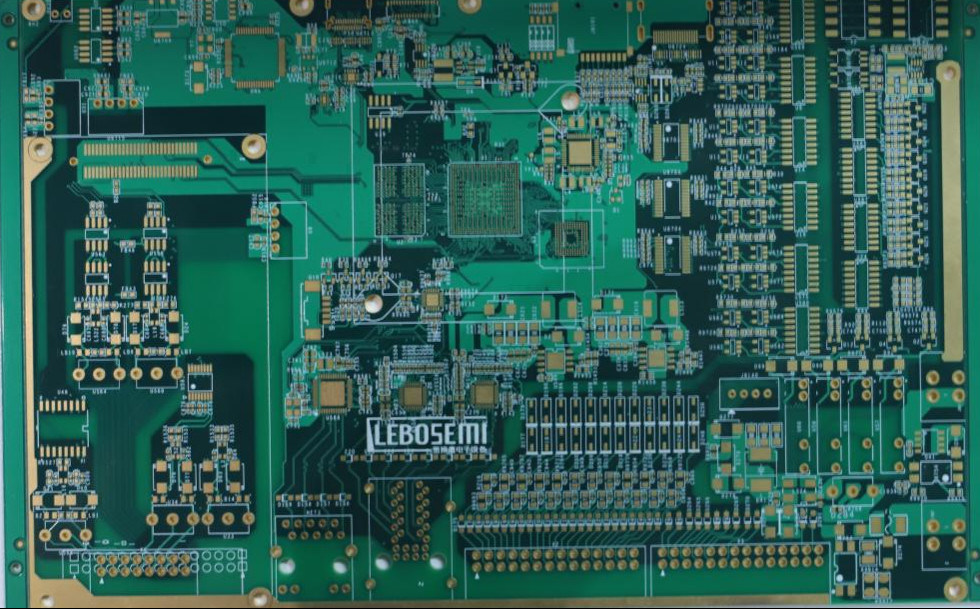

12-layer electric gold Medical board PCB
Medical PCBs (Printed Circuit Boards) are specialized circuit boards designed and manufactured to meet the stringent requirements of medical devices. They are essential components in everything from simple diagnostic tools to complex life-support systems. Due to the critical nature of their applications, these PCBs must adhere to extremely high standards of reliability, precision, and quality.
Our are meticulously engineered to meet the rigorous demands of the healthcare industry. These boards are manufactured with advanced materials and precision techniques, ensuring exceptional reliability and long-term performance for critical medical applications. Featuring high-density interconnect (HDI) technology, multi-layer designs, and biocompatible finishes, our PCBs are ideal for devices requiring both miniaturization and flawless functionality. Each board undergoes stringent quality control and testing, including IPC Class III standards, to guarantee the highest level of safety and performance. Trust our medical PCBs to be the reliable foundation for your life-saving and diagnostic equipment."
Application Scenarios
-
Diagnostic Imaging: MRI, CT scanners, and ultrasound machines use complex PCBs to process and display high-resolution images.
-
Implantable Devices: Pacemakers, defibrillators, and neurostimulators require ultra-compact, highly reliable PCBs that can operate flawlessly within the human body.
-
Surgical Equipment: Robotic surgery systems, endoscopes, and electrosurgical tools rely on PCBs for precise control and communication.
-
Patient Monitoring: Heart rate monitors, blood glucose meters, and pulse oximeters use PCBs to collect and analyze vital signs.
-
Therapeutic Devices: Infusion pumps, dialysis machines, and ventilators depend on robust PCBs for accurate and continuous operation.
Overview of the Medical PCB Manufacturing Process
Creating a Medical PCB is a highly specialized process that demands precision, strict adherence to quality standards, and meticulous attention to detail. It is not a one-size-fits-all procedure. Instead, it involves a series of carefully controlled steps to ensure the final product is reliable, safe, and meets the rigorous requirements of the medical industry. The entire workflow, from design to final testing, is often governed by standards like IPC Class III, which is the highest level for electronic products.
