FR4 Material Black Oil Drone Circuit Board PCB With ENIG Surface Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | UAV PCB |
| Certification: | ROHS,CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | NA |
| Delivery Time: | 15-20 Working Day |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Drone Circuit Board | Min. Hole Size: | 0.1mm |
|---|---|---|---|
| Material: | FR-4 | Copper Thickness: | 0.5-5.0oz |
| Min. Line Width/Spacing: | 3mil | Layer Count: | 1-30 Layers |
| Board Thickness: | 0.2-5.0mm | Surface Finish: | HASL, ENIG, OSP |
| Max. Panel Size: | 528mm X 600mm | Quotation Request: | Gerber Or BOM List |
| Silkscreen Color: | White, Black, Yellow | Solder Mask Color: | Green, Red, Blue, Black, White |
| Highlight: | Black Oil Drone Circuit Board,FR4 Material Drone Circuit Board |
||
Product Description

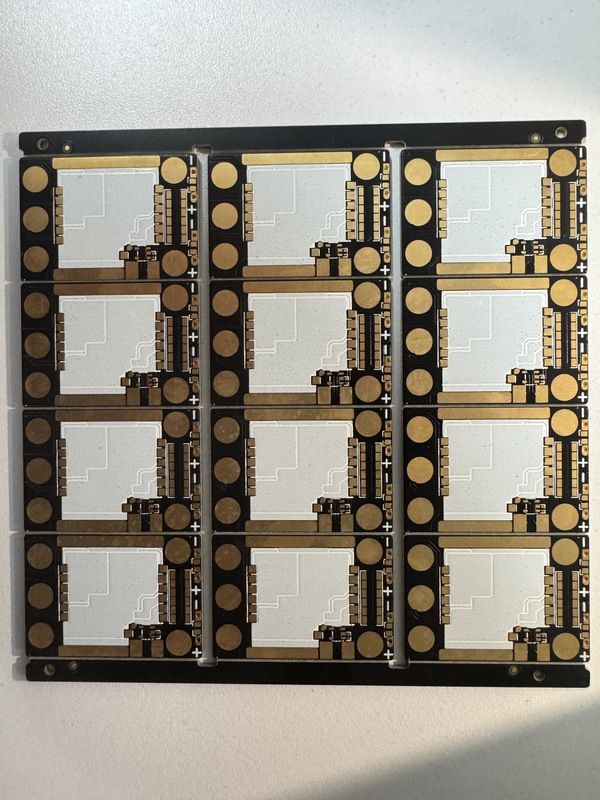

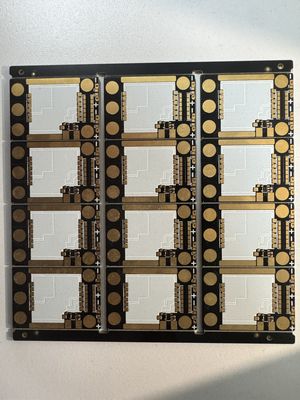

Black oil ENIG Surface Process Drone Circuit Board
Drone circuit boards are circuit substrates installed in electronic components such as flight control systems, image transmission systems, electronic speed controllers, power distribution modules (PDB), GPS modules, sensors, communication modules, and cameras. They are responsible for functions such as signal processing, power conversion, and communication control.
Features:
- The board is required to be thin and light, and the components are arranged compactly to reduce the total weight of the drone.
- Adapt to the vibration environment during high-speed rotation and flight and outdoor temperature changes.
- Multi-functional modules are integrated into one main board (such as the integration of flight control and PDB), reducing volume and weight.
- Measures such as ground layer separation, filter wiring, and signal impedance control are adopted to reduce electromagnetic interference.
Customized services
Please send us your:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
Noted:Normally,Gerber files includes: PCB Types,thickness, ink color, surface treatment process, and if SMT processing is required, you can provide a component BOM and reference designation diagram, etc.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
