10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process

Product Details:

Brand Name: Xingqiang
Certification: ROHS,ISO,UL,IATF
Model Number: As Per Customer's Model

Payment & Shipping Terms:

Minimum Order Quantity: Sample,1 Pc(5 Square Meters)
Price: Based On Gerber Files
Packaging Details: Carton Or As Your Request
Delivery Time: NA
Payment Terms: ,T/T,Western Union
Supply Ability: 100000㎡/Month
Get Best Price Chat Now

Detail Information

PCB Type: Custom Multilayer PCB Min Line Space: 3mil
Bga Pcb: Yes Minimum Hole Size: 0.1mm
Layer Counts: 1-30L Copper Overall: 0.5-5oz
Smt Dip Assembly: Support Board Thickness: 0.2-5.0mm
Price: Gerber Files,BOM List Legend: White,Black,Yellow,Red
Test: 100% Electrical Test Prior Shipment Solder Mask Color: Green, Red, Blue, Black, White, Yellow
Highlight:

10-layer HDI PCB with ENIG finish

,

Custom multilayer PCB blind buried hole

,

High density PCB immersion gold process

Product Description

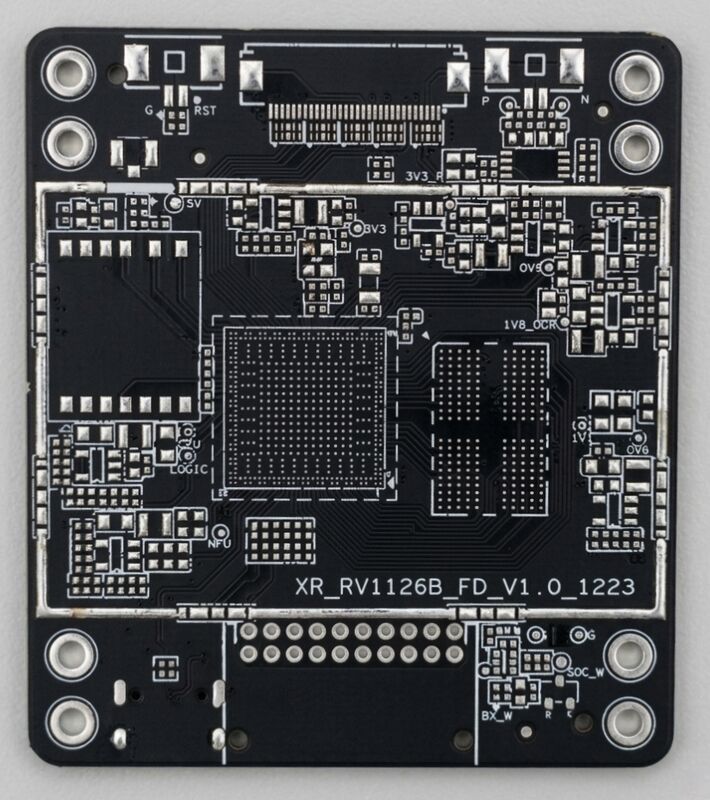

XingQiang High-Tg Multi-layer HDI PCB for AI Vision Applications:

XingQiang provides custom PCB services for high-performance AI vision boards like RV1126B. We support multi-layer HDI design, ENIG surface finish, high-Tg FR-4 material, and strict impedance control to ensure stable signal transmission, strong anti-interference, and wide temperature resistance. Ideal for smart security, industrial vision, edge AI computing and IoT devices.


Technical Parameters:

PCB Type Custom Multilayer PCB
SMT DIP Assembly Support
Min Line Space 3mil
PCBA Standard IPC-Class 2
Copper Overall 0.5-5oz
Board Thickness 1.6mm or Tailored
Solder Mask Color Green, Red, Blue, Black, White, Yellow
Base Material FR4/FR4 High TG/FR4 Black Core/
Via Type Through-hole, Blind, Buried, Microvias
Test 100% Electrical Test Prior Shipment
Shipping Method DHL, UPS, FEDEX Or As Per Your Request


Documentation Checklist for Custom PCB Manufacturing:

• Gerber files (including layers, drill, solder mask, silkscreen)
• PCB BOM list (components, specifications, quantity)
• Pick and place file/XY coordinates for SMT assembly
• Schematic diagram (for DFM review and verification)
• PCB mechanical drawing (outline, dimensions, tolerances)
• Special requirements (impedance control, HDI, blind vias, testing)


10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process 0



          Factory showcase

10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process 1


          PCB Quality Testing


10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process 2


    Certificates and Honors

10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process 3



10-Layer Custom HDI PCB ENIG Immersion Gold High Density Blind Buried Hole Process 4
