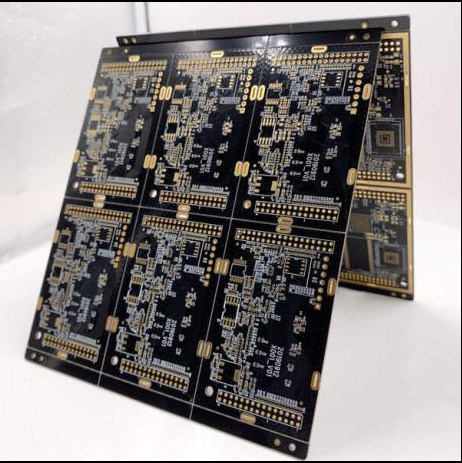

Medical Printed Circuit Board Black Oil FR4 Material for Medical Electronic Equipment
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb: | Medical Pcb | Surface Mount Technology: | Yes |
|---|---|---|---|
| Impedance Control: | Yes | Layer: | 1-30 Layers |
| Board Size: | Customized | Silkscreen Color: | White, Black, Yellow |
| Solder Mask: | Green, Red, Blue, Black, White | Quotation: | Gerber Files Or BOM List |
| Highlight: | Medical PCB black oil FR4,Medical electronic equipment PCB,FR4 material medical PCB |
||
Product Description
What is the Medical Printed Circuit Board?:
The Medical Printed Circuit Board is a highly specialized and meticulously engineered product designed to meet the rigorous demands of medical devices and healthcare applications. As technology advances in the medical field, the requirement for reliable, efficient, and precision-driven components has never been greater. Our Medical Printed Circuit Board stands out due to its superior quality, advanced manufacturing processes, and adherence to strict industry standards, making it an indispensable element in the production of critical medical equipment.
Technical Parameters:
| Silkscreen Color | White, Black, Yellow |
| Min.hole Size | 0.1mm |
| Impedance Control | Yes |
| Surface Finish | HASL, ENIG, OSP |
| Surface Mount Technology | Yes |
| Layer | 1-30 Layers |
| Min.line Width | 0.075mm |
| Quotation | Gerber Files Or BOM List |
| Board Size | Customized |
Applications:
| Medical Device Category | Common PCB Types Used | Key Requirements |
| Imaging (CT/MRI) | Multilayer, High-Frequency | High-speed data, Heat resistance |
| Implantable (Pacemakers) | Flexible (FPC), Rigid-Flex | Miniaturization, Biocompatibility |
| Wearables/Meters | HDI, Single-sided | Small size, Low cost, Portability |
| Surgery Robots | HDI, Multilayer | High precision, Durability |
| Basic Monitors | Single-sided, Double-sided | Cost-effective, Stable performance |
Customized Service
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
Note:Normally,Gerber files includes: PCB thickness, ink color, surface treatment process and designation diagram, etc.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
