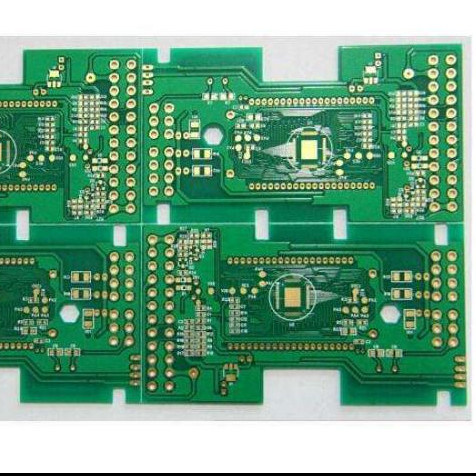

Multilayer Rigid PCB with AOI Testing Precision for Tailored Medical & Industrial Applications
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | Medical PCB | Layer: | 1-30L |
|---|---|---|---|
| Material: | FR4 | Min.hole Size: | 0.1mm |
| Max.Board Size: | 528*600mm | Silkscreen: | White, Black, Yellow |
| Quotation Request: | Gerber File Or BOM List | Solder Mask Color: | Green, Blue, Black, Red, Yellow, White |
| Testing: | Flying Probe Test, X-Ray Inspection, AOI | Custom Thickness: | 1.6Mm/1.2Mm/1.0Mm/0.8Mm/0.6Mm/0.4Mm |
| Highlight: | ENIG surface finish medical PCB,custom size medical circuit board,medical printed circuit board with warranty |
||
Product Description
FR4-Based Medical PCBs: Meeting Healthcare Industry Standards:
Xingqiang Circuit Board Technology Co., Ltd. provides high-precision custom rigid PCBs designed for medical equipment. These multilayer or HDI boards feature ENIG surface finish, high-TG materials, and strict quality control. Manufactured strictly according to your Gerber files and specifications, our PCBs support ISO compliance for medical applications. They deliver stable performance, high reliability, and long-term durability for diagnostic, monitoring, and therapeutic medical devices.Why Choose ENIG Surface Finish for Medical PCBs?:
1.Strong corrosion resistance & good electrical conductivity
Keeps medical devices like patient monitors working stably in sterile, high-demand healthcare settings.
2. Flat, even surface
Makes it easy to mount small, dense components and creates secure solder joints, perfect for compact medical device designs.
3. Non-porous & oxidation-proof
Prevents signal interference and extends the PCB’s service life, cutting down on device maintenance costs.
4. Meets medical industry rules
Follows strict safety and performance requirements, ensuring the PCBs are safe for life-critical medical uses.
What Medical Devices Can You Customize PCBs For?:
1.Patient Monitoring Devices
E.g., ECG monitors, blood pressure monitors, and pulse oximeters. ENIG PCBs ensure stable signal transmission for accurate vital sign tracking.
2.Diagnostic Equipment
Including ultrasound machines, portable MRI scanners, and in vitro diagnostic (IVD) analyzers. Their corrosion resistance supports long-term precision in clinical testing.
3.Portable Medical Devices
Such as handheld glucose meters and wearable health trackers. The flat, compact surface of ENIG PCBs fits miniaturized device designs.
4.Life-Support Equipment
Like ventilators and defibrillators. ENIG’s compliance with medical standards guarantees reliable performance in life-critical scenarios.
