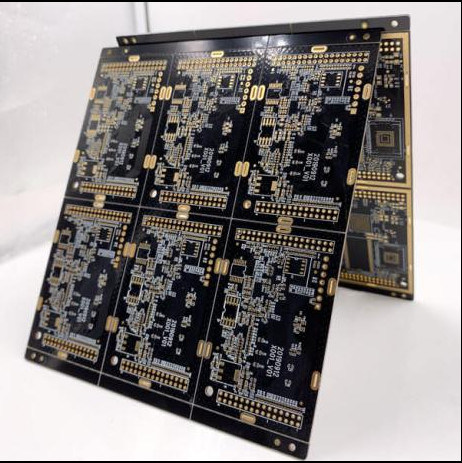

Custom Medical-Grade PCB Manufacturing UL Compliant for Medical Electronic Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Name: | Medical Pcb | Impedance Control: | Yes |
|---|---|---|---|
| Copper Overall: | 0.5-5oz | Layer: | 1-30 Layers |
| Max Board Size: | 528*600Mm | Surface Mount Technology: | DIP,QFN,BGA |
| Silkscreen Color: | White, Black, Yellow | Quotation: | Gerber Files Or BOM List |
| Solder Mask: | Green, Red, Blue, Black, White,Yellow | Normal Board Thick: | 1.6Mm/1.2Mm/1.0Mm/0.8Mm/0.6Mm/0.4Mm |
| Highlight: | Medical PCB black oil FR4,Medical electronic equipment PCB,FR4 material medical PCB |
||
Product Description
Your Mission, Our Precision: Engineering for a Healthier Tomorrow.:
In the rapidly evolving landscape of medical technology, reliability is more than a standard—it is the baseline. We specialize in delivering high-precision, custom medical-grade PCB solutions engineered for the most demanding healthcare environments. By combining rigorous quality control, cutting-edge manufacturing, and total design flexibility, we transform industry standards into your competitive advantage, providing a robust core for critical devices ranging from vital signs monitoring to diagnostic imaging.
Technical Parameters:
| PCB Name | Custom Medical PCB |
| Silkscreen Color | White, Black, Yellow |
| Min.hole Size | 0.1mm |
| Impedance Control | +/-10% or +/-5% |
| Surface Finish | HASL, ENIG, OSP |
| Surface Mount Technology | Yes |
| Layer | 1-30 Layers |
| Min.line Width | 3Mil(0.075mm) |
| Quotation | Gerber Files Or BOM List |
| Max. Board Size | 528*600Mm |
Application-Specific Expertise:
| Medical Device Category | Common PCB Types Used | Key Requirements |
| Imaging (CT/MRI) | Multilayer, High-Frequency | High-speed data, Heat resistance |
| Implantable (Pacemakers) | Flexible (FPC), Rigid-Flex | Miniaturization, Biocompatibility |
| Wearables/Meters | HDI, Single-sided | Small size, Low cost, Portability |
| Surgery Robots | HDI, Multilayer | High precision, Durability |
| Basic Monitors | Single-sided, Double-sided | Cost-effective, Stable performance |
How to enable your customization process?
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
Note:Normally,Gerber files includes: PCB thickness, ink color, surface treatment process and designation diagram, etc.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
