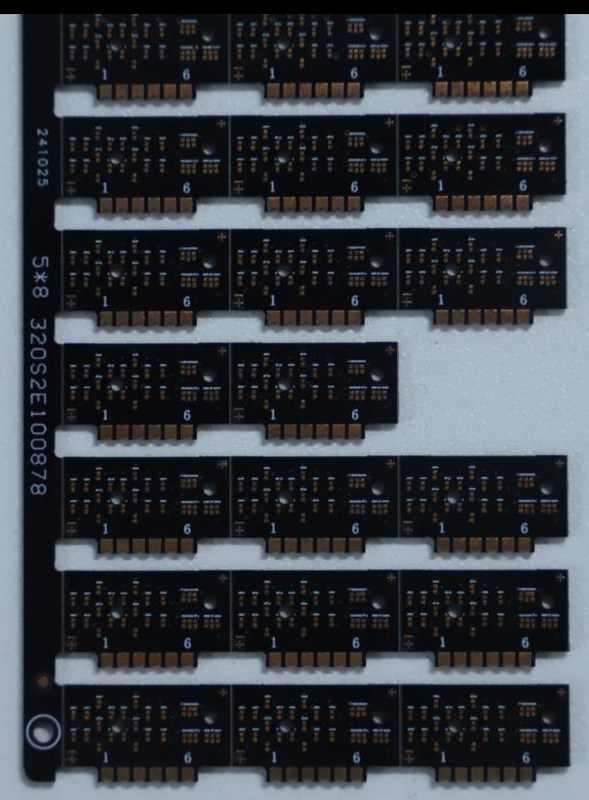

Custom 4-layer High-Precision Medical PCB High-TG FR4&Superior Electrical Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Name: | High-Precision Medical PCB | Min. Hole Size: | 0.1mm |
|---|---|---|---|
| Material: | FR-4 | Copper Overall: | 0.5-5oz |
| Layer Count: | 1-30 Layers | Testing: | 100% E-test |
| Max. Panel Size: | 528x600mm | Surface Finish: | HASL, ENIG, OSP |
| Application: | Medical Equipment | Silkscreen Color: | White, Black, Yellow |
| Solder Mask Color: | Green, Blue, Black, Red, Yellow, White | Normal Thickness: | 1.6Mm/1.2Mm/1.0Mm/0.8Mm/0.6Mm/0.4Mm |
| Highlight: | Black Oil OSP 4 Layer PCB,Medical Equipment 4 Layer PCB |
||
Product Description
Xingqiang: Reliable Custom PCBs for Medical & High-End Applications
Xingqiang provides high-quality custom PCBs designed for medical and high-end equipment. These boards feature excellent stability, strong durability, and precise circuit layout, supporting ENIG surface treatment and high-temperature resistant materials. Each product is built to your exact specifications, with strict quality inspection throughout production. Ideal for monitoring, diagnostic, and therapeutic devices, they deliver consistent performance and reliable quality for critical applications.
- Enhanced wiring capacity: The 4-layer structure allows separate power, ground, and signal layers, reducing crosstalk and improving signal integrity, suitable for medium-complexity circuits in communication devices and industrial control systems.
- Reliable solderability: The OSP film is easily removed during soldering, ensuring good solder wetting on copper surfaces, minimizing cold solder joints, and adapting to precision components like QFP and BGA.
- Superior light-shielding and protection: The black solder mask effectively blocks light interference in sensitive circuits and isolates the board from external environments, boosting corrosion and abrasion resistance.
- Cost-effectiveness: Compared to higher-layer boards, the 4-layer design balances performance and cost; combined with low-cost OSP and economical black ink, it offers controllable production expenses, suitable for cost-sensitive mid-complexity applications.
- Environmental friendliness: The OSP process uses non-toxic organic compounds, and the black ink is generally eco-friendly, complying with environmental regulations and reducing hazardous waste.
- Dimensional precision: The thin OSP layer and black ink do not significantly affect the board’s thickness or flatness, maintaining precision for high-density 4-layer circuit designs.
Core Challenges in Manufacturing Medical-grade PCBs
1.Strict medical standards compliance, including IPC Class 2, requiring full process traceability and zero-defect control.
2. High-precision requirements for fine lines, tiny vias, and tight tolerances, leaving almost no room for production errors.
3. Stable performance of high-TG, heat-resistant and reliable materials, with consistent quality in mass production.
4. Complex ENIG surface treatment, ensuring uniform thickness and strong bonding for long-term durability.
5. Comprehensive reliability testing, including electrical performance, thermal stress and safety verification.
6. Dense circuit layout and multilayer structure design, demanding advanced equipment and mature technical capabilities.
