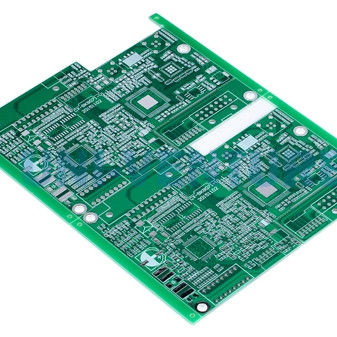

Advanced Custom Medical PCB High-TG Material&Precision Layout Design
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | Custom Medical PCB | Minimum Line Space: | 3mil (0.075mm) |
|---|---|---|---|
| Minimum Hole Size: | 0.1Mm | PCB Layer: | 1-30 Layers |
| Material: | High Tg FR4 | Surface Finishing: | HASL/OSP/ENIG |
| Ink Color: | Green Oil Or Tailored | Board Thinkness: | 2.0/1.2/1.6/1.0/0.8/0.6/0.4Mm |
| Price: | Based On Gerber Files Or BOM List | Solder Mask Color: | Green, Blue, Black, Red, Yellow, White |
| Highlight: | High Security Medical PCB,High Security Medical Equipment PCB |
||
Product Description
Medical Circuit Boards with Flame-retardant Properties
Our flame-retardant custom medical circuit boards are engineered to mitigate critical safety risks in healthcare settings. Built with UL94 V-0 certified materials, these boards self-extinguish to prevent fire propagation, a vital safeguard for life-supporting devices like patient monitors and infusion pumps. This inherent safety, paired with ISO 13485 compliance, ensures our PCBs meet the strictest standards for reliability in hospitals and clinical environments.
Speed Up Your PCB Quotation & Production Process
To facilitate an efficient and accurate quotation process, we require detailed input from our clients, including Gerber files and a BOM (Bill of Materials) list. The Gerber files provide the exact design specifications of the PCB, including layout, drill data, and layer information, enabling us to precisely manufacture your boards. The BOM list outlines all components required for assembly, ensuring that we source the correct parts and assemble your board according to your design intent. By providing these files, you help us deliver a seamless, error-free manufacturing and assembly experience.
| Feature | Description |
|---|---|
| Structure | High-precision multilayer rigid PCB |
| Material | High-TG, flame-retardant, stable performance |
| Surface Finish | ENIG for reliability and solderability |
| Precision | Fine line, tight tolerance, high integration |
| Application | Medical & high-end equipment |
| Quality | Strict testing, ISO 13485 compliant |
Custom PCB Production Process:
1.Receive and review customer design files (Gerber files, BOM, and technical specifications).
2. Confirm all details with the customer to ensure accuracy before production.
3. Prepare high-quality base materials and start PCB fabrication (imaging, etching, drilling, plating, surface finishing).
4. Conduct electrical testing and quality inspection for bare boards.
5. Source components based on BOM and perform SMT assembly.
6. Carry out final functional testing and full quality check.
7. Package products and arrange on-time delivery as required.
