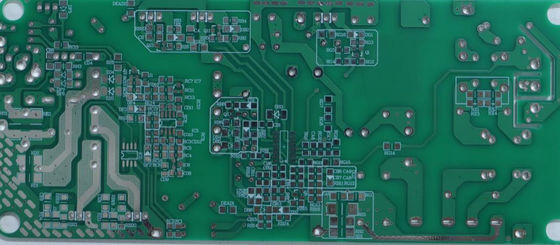

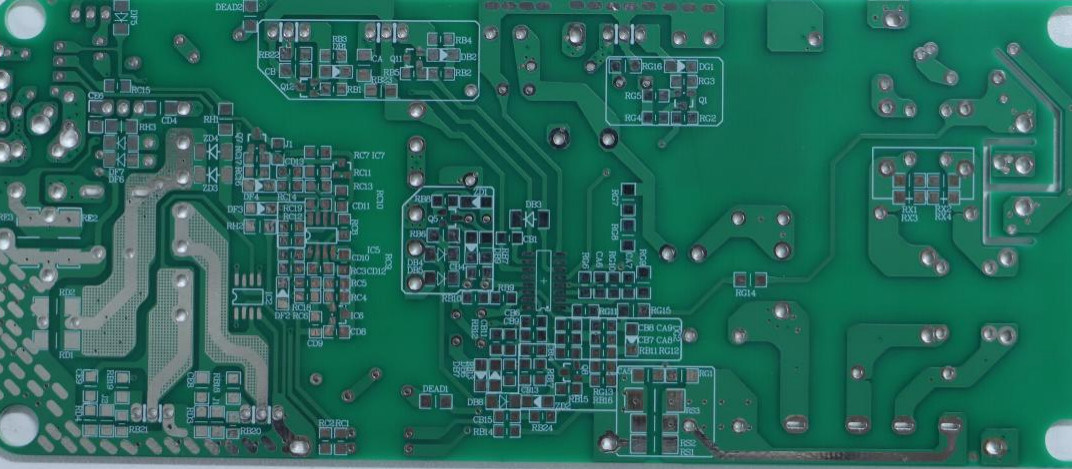

FR4 Material Custom Medical PCB Excellent Signal Integrity for Diagnostic Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Custom Medical PCB | Min. Hole Size: | 0.1mm |
|---|---|---|---|
| Min. Line Width/Spacing: | 0.075mm | Layer: | 1-30L |
| NPTH: | +/-0.05Mm | Thickness: | 0.2-5.0mm |
| Surface Finish: | HASL, ENIG, OSP | Max. Panel Size: | 528mm*600mm |
| Quotation: | Gerber Files/BOM List | Silkscreen: | White, Black, Yellow,Red |
| Solder Mask Color: | Green, Blue, Red, Black, White,Yellow | Testing Medthod: | Flying Probe Test, X-Ray Inspection, AOI |
| Highlight: | FR4 Material Double Sided PCB Board,Through Hole Double Sided PCB,FR4 PCB Board For Medical Device |
||
Product Description
High-Reliability PCB Solutions for Critical Medical Electronics
✔ 30 Years Expertise in PCB Manufacturing
✔ ISO 9001, ROHS, and ISO /TS16949 Certified
✔ Support customized services
✔ Professional Engineering Support (DFM, impedance simulation)
✔ Global Shipping (DHL, FedEx, UPS) – Delivered to USA, Germany, UK, Japan, Australia, etc.
Send Us Your Files to Start Your Project:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
What specific devices can we customize for your needs?
• Imaging: Precision PCBs for CT, MRI, and high-frequency Ultrasound systems.
• Monitoring: Stable boards for 24/7 ECG, ICU monitors, and anesthesia tracking.
• Surgical: High-density, heat-resistant circuits for robotic arms and endoscopes.
• Portable: Compact, moisture-proof solutions for AEDs and wearable health tools.
• Lab Tech: Tailored layers for automated biochemical analyzers and PCR kits.
Factory showcase
PCB Quality Testing
Certificates and Honors
