12 Layers Sinking Gold High Density PCB HD Design for Electrionic Devices
Product Details:
| Brand Name: | High Density PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | NA |
| Delivery Time: | 15-16 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Surface Finish: | HASL, ENIG, OSP | Count: | 12 Layer |
|---|---|---|---|
| Testing Service: | 100% Testing | Cooper Thickness: | 2oz Out Layer , 1oz Inner Layer |
| Min. Hole Size: | 0.1mm | Surface Treament: | ENIG |
| Board Size: | Customized | Min. Line Width/Spacing: | 0.075mm/0.075mm |
| Highlight: | Sinking Gold High Density PCB,Multiple Layers HD Printed Circuit Board |
||
Product Description

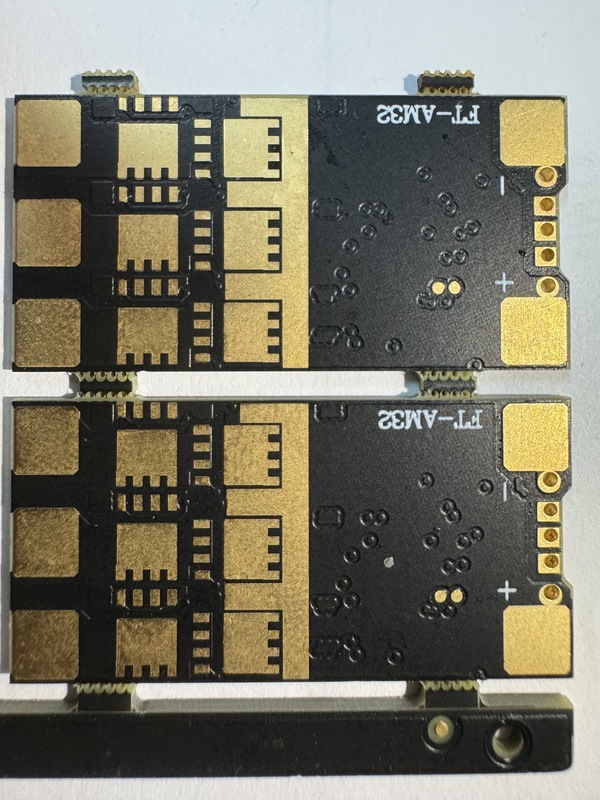

12 Layers HD PCB Sinking Gold Board:
The High Density PCB is a cutting-edge circuit board specifically designed for demanding applications in the automotive electronics industry. With a superior construction and advanced features, this PCB is ideal for projects that require high performance and reliability.
Key Product Attributes:
- Copper Thickness: The High Density PCB boasts a copper thickness of 2oz on the outer layers and 1oz on the inner layers. This design ensures excellent conductivity and heat dissipation, making it suitable for high-power applications.
- Layer Count: This PCB features 8 layers, allowing for complex circuitry and improved signal integrity. The multiple layers also enable efficient routing of signals and power, reducing electromagnetic interference.
- Thickness: With a thickness of 1.2mm, the High Density PCB strikes the perfect balance between durability and flexibility. This thickness makes it suitable for compact designs while maintaining structural integrity.
- Minimum Via Diameter: The PCB supports a minimum via diameter of 0.2mm, facilitating the implementation of staggered vias for optimized signal routing and signal integrity (SI).
- Surface Finish: The High Density PCB offers multiple surface finish options including HASL, ENIG, OSP. These finishes provide varying levels of solderability, corrosion resistance, and conductivity to meet different project requirements.
Features:
- Product Name: High Density PCB
- Board Size: Customized
- Min. Line Width/Spacing: 0.075mm/0.075mm
- Impedance Control: ±10%
- Minimum Via Dia: 0.2mm
- Surface Finish: HASL, ENIG, OSP
Technical Parameters:
| Testing Service | 100% Testing |
| Count | 8 Layer |
| Layer Count | 1-30 |
| Layer | 12L |
| Board Size | Customized |
| Min. Hole Size | 0.1mm |
| Min. Line Width/Spacing | 0.075mm/0.075mm |
| Min. Solder Mask Clearance | 0.1mm |
| Copper Thickness | 2oz Out Layer , 1oz Inner Layer |
| Board Thickness | 1.2mm |
Customization:
Customize your High Density PCB product to fit your specific needs with our Product Customization Services:
- Brand Name: High Density PCB
- Place Of Origin: China
- Surface Finish: HASL, ENIG, OSP
- Cooper Thickness: 2oz Out Layer, 1oz Inner Layer
- Min. Hole Size: 0.1mm
- Min. Order Quantity: 5㎡
- Thickness: 1.2mm
Enhance your High Density PCB for applications in smartphones, with features like Stacked Vias for improved Signal Integrity (SI).
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is High Density PCB.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What are the key features of High Density PCB?
A: High Density PCB offers superior circuit density, enhanced signal integrity, and reliability for demanding applications.
Q: Is High Density PCB suitable for high-performance electronic devices?
A: Yes, High Density PCB is designed to meet the requirements of high-performance electronic devices.
Q: Can I customize the specifications of High Density PCB?
A: Yes, we offer customization options to tailor High Density PCB to your specific requirements.
