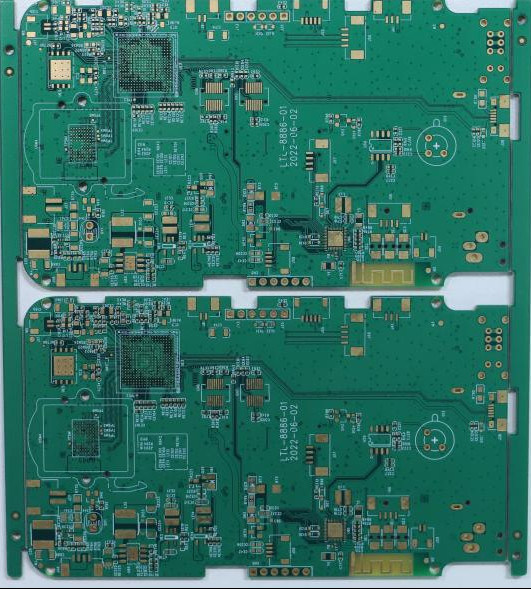

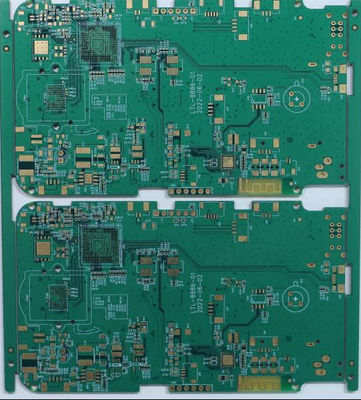

Customizable 2-16 Layers Gold Plating PCB Board Multilayer Circuit Board 1.2mm
Product Details:
| Brand Name: | BT PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 14-15 Working Days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Quality Control: | IPC Class 2, 100% E-test | Material: | FR-4 |
|---|---|---|---|
| Lead Time: | 14-15 Working Days | Min. Silkscreen Clearance: | 0.1mm |
| Min. Solder Mask Clearance: | 0.1mm | Board Thickness: | 0.2mm-5.0mm |
| Min. Hole Size: | 0.1mm | Silkscreen Color: | White, Black, Yellow |
| Highlight: | 16 Layers Gold Plating PCB Board,Multilayer Circuit Board 1.2mm |
||
Product Description
Product Description:
The BT PCB product is a versatile option for various electronic applications, offering a range of customizable features to meet specific project requirements. With silkscreen color options in White, Black, and Yellow, customers can choose the most suitable visual design for their boards.
Quality control is a top priority for the BT PCB, meeting IPC Class 2 standards and undergoing a rigorous 100% E-test to ensure reliability and consistency in performance. This commitment to quality assurance gives customers peace of mind knowing that their PCBs are manufactured to industry-leading standards.
Offering a layer count range from 2 to 16 layers, the BT PCB provides flexibility for projects of different complexities. Whether it's a simple double-layer board or a more intricate design requiring multiple layers, this product can accommodate various circuit layouts and functionalities.
When it comes to board thickness, the BT PCB offers a broad range from 0.2mm to 6.0mm, allowing customers to select the ideal thickness for their specific application needs. This versatility in thickness options caters to a wide range of projects, from slim and lightweight designs to more robust and durable applications.
Customers can benefit from a quick turnaround time with the BT PCB, as it boasts a lead time of 3 to 5 working days. This efficient production timeline enables timely project completion and facilitates faster product development cycles.
Furthermore, the BT PCB features gold plating, enhancing the board's conductivity and corrosion resistance. Gold plating ensures reliable electrical connections and improved signal transmission, making it a valuable addition to high-performance electronic devices.
The BT PCB also supports High-Density Interconnect (HDI) technology, enabling the integration of complex circuitry in a compact design. HDI allows for increased connection density, reduced signal interference, and improved overall performance, making it an excellent choice for advanced electronic applications.
In summary, the BT PCB product offers a comprehensive solution for electronic circuit board needs, combining customizable features, stringent quality control measures, and innovative technologies such as gold plating and HDI. With its diverse range of specifications and quick lead time, the BT PCB is a reliable choice for projects requiring high-quality, precision-engineered printed circuit boards.
Features:
- Product Name: BT PCB
- Silkscreen Color: White, Black, Yellow
- Layer Count: 2-16 Layers
- Quality Control: IPC Class 2, 100% E-test
- Min. Hole Size: 0.2mm
- Additional Features:
- HDI
- Gold Plating
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Min. Hole Size | 0.1mm |
| Board Thickness | 1.2mm |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Immersion Tin |
| Min. Silkscreen Clearance | 0.1mm |
| Surface Mount Technology | Available |
| Copper Thickness | 1/3 Oz, 1/2 Oz, 1 Oz, 2 Oz |
| Silkscreen Color | White, Black, Yellow |
| Min. Solder Mask Clearance | 0.1mm |
| Layer Count | 2-16 Layers |
| Lead Time | 14-15 work days |
Applications:
Product Application Occasions and Scenarios for the BT PCB:
The BT PCB, originating from China, is a high-quality product with various surface finishes such as HASL, ENIG, OSP, Immersion Silver, and Immersion Tin. With a delivery time of 14-15 work days and a supply ability of 3000㎡, this product is suitable for a wide range of application occasions and scenarios.
1. Consumer Electronics:
Due to its versatile layer count of 2-16 layers and board thickness ranging from 0.2mm to 5.0mm, the BT PCB is ideal for consumer electronics such as smartphones, tablets, and laptops. The option for Gold Plating surface finish enhances the aesthetics and performance of these devices.
2. Telecommunications:
For telecommunications equipment requiring high-density interconnects, the BT PCB with HDI (High-Density Interconnect) technology is a perfect choice. The low dielectric constant of the board ensures efficient signal transmission, making it suitable for routers, switches, and communication devices.
3. Industrial Automation:
Industrial automation systems often demand PCBs with specific copper thicknesses for power distribution and signal integrity. The BT PCB offers copper thickness options of 1/3 1 Oz, and 2 Oz, catering to various industrial automation applications.
4. Automotive Electronics:
With a minimum solder mask clearance of 0.1mm, the BT PCB meets the precision requirements of automotive electronics. It can be used in vehicle control units, infotainment systems, and LED lighting applications within the automotive industry.
Overall, the BT PCB's flexibility in surface finishes, layer counts, and board thickness, combined with its quick delivery time and reliable supply ability, make it a top choice for diverse product application occasions and scenarios across industries.
