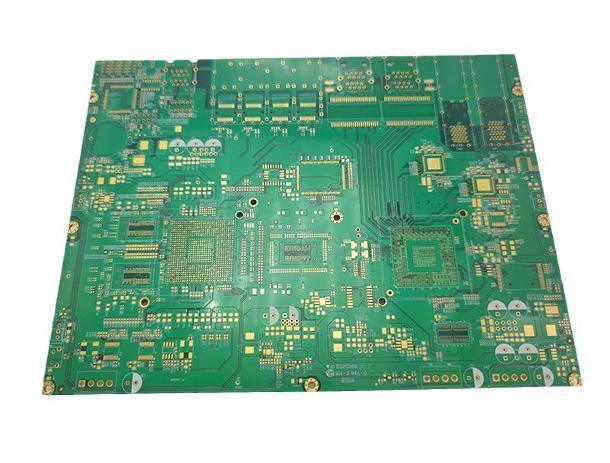

Customized Impedance Control Military Industry PCB Board For Long Lasting Solutions
Product Details:
| Brand Name: | Military PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Copper Weight: | 1-6oz | Testing Method: | Flying Probe, Fixture Test |
|---|---|---|---|
| Min. Line Width/Spacing: | 0.1mm | Min. Panel Size: | 50mm X 50mm |
| Max. Panel Size: | 528mm X 600mm | Impedance Control: | ±10% |
| Solder Mask Color: | Green, Blue, Black, Red, Yellow, White | Thickness: | 0.2-5.0mm |
| Highlight: | Impedance Control Military Industry PCB,Military Industry PCB Board |
||
Product Description
Product Description:
The Military PCB product is designed to meet the demanding requirements of military applications, offering high reliability and extreme temperature resistance. With stringent Impedance Control of ±10%, this PCB ensures accurate signal transmission even in challenging environments.
For superior performance and durability, the Military PCB is available with multiple Surface Finishes including Immersion Gold, HASL, OSP, and ENIG. These finishes provide excellent corrosion resistance and ensure stable operation over a wide range of temperatures.
Customization options for the Military PCB include a variety of Silkscreen Colors such as White, Black, and Yellow, allowing for clear labeling and easy identification of components. The choice of Solder Mask Colors, including Green, Blue, Black, Red, Yellow, and White, offers further customization to suit specific project requirements.
Rest assured of the quality and reliability of the Military PCB as it comes with certifications including ROHS and CE compliance. These certifications guarantee that the PCB meets international standards for quality, safety, and environmental friendliness.
In conclusion, the Military PCB is the ideal choice for applications that demand high reliability and extreme temperature resistance. With precise Impedance Control, versatile Surface Finishes, customizable colors, and certifications for quality assurance, this PCB offers unmatched performance and durability for military use.
Features:
- Product Name: Military PCB
- Thickness: 0.2-3.2mm
- Min. Panel Size: 50mm X 50mm
- Silkscreen Color: White, Black, Yellow
- Material: High-grade Military Grade Materials
- Solder Mask Color: Green, Blue, Black, Red, Yellow, White
Technical Parameters:
| Technical Parameter | Specification |
|---|---|
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Min. Hole Size | 0.1mm |
| Certifications | ROHS,CE |
| Min. Line Width/Spacing | 0.1mm |
| Thickness | 0.2-5.0mm |
| Impedance Control | ±10% |
| Copper Weight | 1-6oz |
| Max. Panel Size | 528mm X 600mm |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | Immersion Gold, HASL, OSP, ENIG |
Applications:
The Military PCB, originating from China, is a cutting-edge product designed to meet the demanding requirements of various military applications. With surface finish options including Immersion Gold, HASL, OSP, and ENIG, this PCB offers exceptional performance in extreme conditions.
One of the key attributes of the Military PCB is its extreme temperature resistance, making it ideal for military applications where the equipment is subjected to wide temperature ranges. Whether in scorching deserts or freezing arctic environments, this PCB can withstand the harshest conditions without compromising its functionality.
Furthermore, the Military PCB is known for its high reliability, ensuring that critical military systems operate flawlessly without the risk of failure. This reliability is crucial in mission-critical scenarios where any malfunction could have severe consequences.
In addition to temperature and reliability, the Military PCB also offers impressive vibration resistance, making it suitable for use in vehicles, aircraft, and other military equipment that experience constant vibrations during operation. The PCB's sturdy construction and high-quality materials ensure that it can withstand continuous vibrations without impacting its performance.
From small-scale operations to large military installations, the Military PCB caters to a wide range of panel sizes, with a minimum size of 50mm x 50mm and a maximum size of 528mm x 600mm. This versatility allows for flexibility in designing and implementing various military electronic systems.
With certifications including ISO 9001, RoHS, and UL, the Military PCB adheres to international quality standards, guaranteeing its reliability and performance. Whether used in communication systems, radar equipment, or military vehicles, this PCB delivers the uncompromising quality and durability required for critical military operations.
Customization:
Product Customization Services for the Military PCB product:
Brand Name: Military PCB
Place Of Origin: China
Min. Panel Size: 50mm X 50mm
Layer Count: 2-30 Layers
Material: High-grade Military Grade Materials
Max. Panel Size: 600mm X 1200mm
Min. Line Width/Spacing: 3 mil
Key Features: Long Lifespan, High Reliability, EMI Resistance
FAQ:
Q: What is the brand name of this PCB product?
A: The brand name of this PCB product is Military PCB.
Q: Where is the Military PCB product manufactured?
A: The Military PCB product is manufactured in China.
Q: Is the Military PCB product suitable for military applications only?
A: While designed for military applications, the Military PCB product can also be used in various other industries requiring high quality and reliability.
Q: Are the Military PCBs compliant with industry standards?
A: Yes, the Military PCBs are manufactured to meet industry standards for quality, performance, and reliability.
Q: Can custom designs or specifications be requested for the Military PCB product?
A: Yes, custom designs or specifications can be requested for the Military PCB product to meet specific project requirements.
