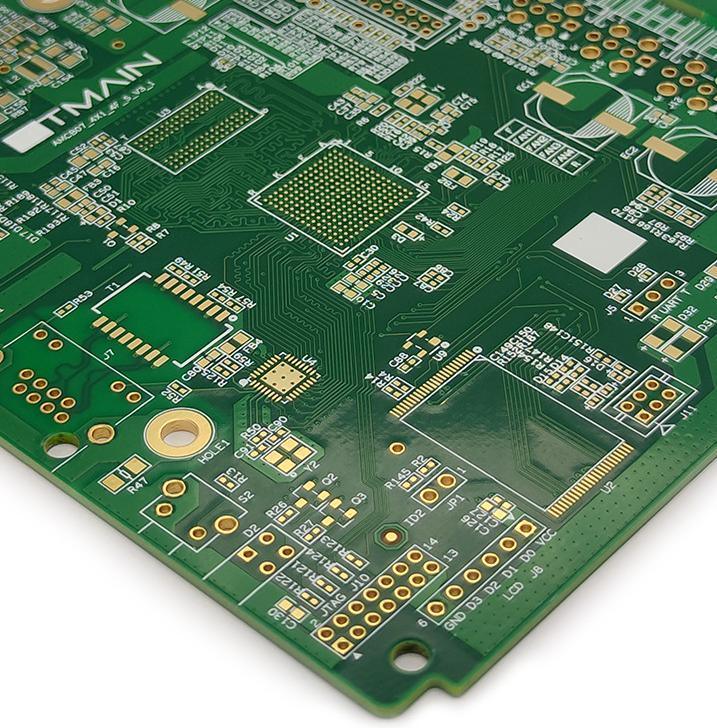

Vibration Resistance Multilayer PCB Printed Circuit Board For Heavy Duty Military Industry
Product Details:
| Brand Name: | Military PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | NA |
| Delivery Time: | 14-15 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Silkscreen Color: | White, Black, Yellow | Thickness: | 0.2-5.0mm |
|---|---|---|---|
| Min. Hole Size: | 0.1mm | Min. Line Width/Spacing: | 0.075mm |
| Certifications: | ROHS, CE | Layer Count: | 1-30 Layers |
| Copper Weight: | 1-6oz | Material: | FR4 |
| Highlight: | Vibration Resistance Printed Circuit Board,PCB For Military Industry,Military Industry Multilayer PCB |
||
Product Description
Product Description:
The Military PCB product is a top-of-the-line printed circuit board specifically designed for military applications, providing exceptional performance in challenging environments. With a minimum panel size of 50mm X 50mm, this PCB is compact yet powerful, making it suitable for a wide range of military electronics.
One of the key features of the Military PCB is its high-grade military-grade materials, ensuring durability and reliability in demanding situations. The PCB is built to withstand extreme temperatures, making it ideal for use in harsh climates and environments where temperature fluctuations are common. This extreme temperature resistance contributes to the long lifespan of the PCB, ensuring that it can perform consistently over an extended period.
When it comes to reliability, the Military PCB excels with a minimum hole size of 0.2mm, allowing for precise and accurate connections. This level of precision is crucial in military applications where every component must function flawlessly to ensure the overall performance of the system. The solder mask color options of green, blue, black, red, yellow, and white provide flexibility in design while maintaining high reliability.
With a thickness range of 0.2-2.0mm, the Military PCB offers versatility in terms of application and compatibility with various electronic systems. Whether it is used in communication devices, radar systems, or other military equipment, this PCB delivers consistent performance and durability.
In summary, the Military PCB stands out for its long lifespan, extreme temperature resistance, and high reliability. Its use of high-grade military-grade materials ensures that it can withstand the rigors of military operations while maintaining optimal performance. With a focus on quality and durability, this PCB is the ideal choice for military applications where precision and reliability are paramount.
Features:
- Product Name: Military PCB
- Material: High-grade Military Grade Materials
- Testing Method: Flying Probe, Fixture Test
- Copper Weight: 1-6oz
- Min. Panel Size: 50mm X 50mm
- Max. Panel Size: 528mm X 600mm
Technical Parameters:
| Technical Parameter | Specification |
|---|---|
| Impedance Control | ±10% |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Testing Method | Flying Probe, Fixture Test |
| Material | High-grade Military Grade Materials |
| Copper Weight | 1-6oz |
| Thickness | 0.2-5.0mm |
| Min. Panel Size | 50mm X 50mm |
| Certifications | ROHS,CE |
| Silkscreen Color | White, Black, Yellow |
| Max. Panel Size | 528mm X 600mm |
Applications:
Military-grade PCBs are essential in a variety of defense and aerospace systems:
• Avionics: Flight control systems, navigation equipment, and cockpit displays.
• Missile and Guidance Systems: Components in guided munitions and targeting systems.
• Communication Equipment: Secure radios, satellite communication, and data links.
• Ground and Naval Vehicles: Control systems in tanks, ships, and submarines.
• Radar and Electronic Warfare: Circuitry for surveillance, threat detection, and countermeasures.
Customization:
Product Customization Services for the Military PCB product:
Brand Name: Military PCB
Place Of Origin: China
Min. Line Width/Spacing: 0.075mm
Solder Mask Color: Green, Blue, Black, Red, Yellow, White
Testing Method: Flying Probe, Fixture Test
Certifications:ROSE, CE
Key Features: Extreme Temperature Resistance, Vibration Resistance
FAQ:
Q: What is the brand name of this PCB product?
A: The brand name of this PCB product is Military PCB.
Q: Where is this PCB product manufactured?
A: This PCB product is manufactured in China.
Q: What are the key features of Military PCB?
A: Military PCBs are known for their high durability, reliability, and performance in demanding environments.
Q: Can Military PCB products be customized for specific requirements?
A: Yes, Military PCB products can be customized to meet specific requirements and specifications.
Q: Are Military PCB products compliant with industry standards?
A: Yes, Military PCB products are designed and manufactured to meet industry standards for quality and performance.
