Premium Automotive Custom PCB with ENIG Surface Treatment ISO & RoHS Certified
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As per customer's module |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Name: | Custom Automative PCB | Through-Hole Capability: | Yes |
|---|---|---|---|
| Min. Hole Size: | 0.1mm | Copper Overall: | 0.5-5oz |
| Surface Mount Capability: | BGA/QFN/CSP | Impedance Control: | +/-10% Or +/-5% |
| Surface Finish: | HASL, ENIG, OSP | Max Board Size: | 528 Mm X 600 Mm |
| PCB Price: | Based On Gerber Files | Normal Board Thickness: | 2.0/1.6/1.2/1.0/0.8/0.6/0.4Mm |
| Solder Mask Color: | Green/Red/Black/Blue/White/Yellow | Custom Layer: | 2-Layer,4-Layer,6-Layer,8-Layer Or 8L+ |
| Highlight: | OSP Process Automotive PCB Board,Automotive PCB Board Double Sided,IPC Class 3 Standard Automotive PCB |
||
Product Description

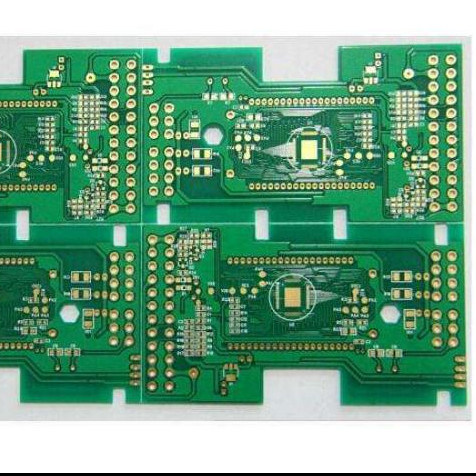

Custom IPC Class 2 PCB Manufacturer for Automotive & Industrial Use
• High-precision multilayer PCB with stable signal transmission and strong anti-interference ability.
• IPC Class 2 compliant and automotive-grade reliability for industrial and vehicle electronics.
• Immersion gold surface treatment for excellent solderability, oxidation resistance and durability.
• Manufactured under strict quality control certified with ISO, RoHS and IATF16949 standards.
• Supports full customization including layer count, size, thickness and special performance requirements.
Main Manufacturing Process Flow of Double-Sided PCB
-
Substrate Preparation:Cut FR-4 or other dielectric materials to size as per customer Gerber files and clean the surface.
-
Drilling:Use CNC machines to drill precision holes for layer interconnection.
-
PTH & Electroplating:Apply conductive layer on hole walls and electroplate copper to ensure stable electrical connection.
-
Dry Film & Exposure:Laminate photosensitive dry film and transfer circuit patterns via UV exposure.
-
Developing:Remove unexposed dry film to expose copper areas for etching.
-
Etching:Etch away excess copper foil to form the required circuit pattern.
-
Stripping:Remove remaining dry film to reveal finished circuits.
-
Solder Mask:Apply solder mask to protect circuits and prevent short circuits.
-
Silkscreen Printing:Print labels, logos and component marks for assembly and maintenance.
-
Surface Finishing:Apply HASL, ENIG, OSP or other treatments to improve solderability and corrosion resistance.
-
Electrical Test:Conduct continuity and insulation tests to eliminate open/short circuits.
-
Routing & Final Inspection:Cut boards to shape and inspect appearance and performance before delivery.
![]()
