Blue Ink Double Sided Spray Solder PCB Automotive Circuit Board HASL Lead Free Surface
Product Details:
Place of Origin: | China |
Brand Name: | xingqiang |
Certification: | ROHS, CE |
Model Number: | Varies by goods condition |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 square meters |
---|---|
Price: | NA |
Delivery Time: | 7-10 work days |
Payment Terms: | ,T/T,Western Union |
Supply Ability: | 3000 |
Detail Information |
|||
Type Of Assembly: | SMT, Thru-hole | Component: | Qualified |
---|---|---|---|
Silk Screen: | White | Copper Weight: | 1-3 Oz |
Metrials: | FR-4,Aluminum,CEM-1 Etc | Slodermask: | Red |
Product: | PCB | Aspect Ratio: | 20:1 |
Used For Product: | Automotive Foot-rest Board | Certifications: | ISO 9001, ROHS,CE |
Class: | Automotive PCB | Surface Treatment: | HASL,OSP |
Other Techniuque: | 1OZ , Green Soldermask , White Legend | Soldmask: | Black |
Pcba: | Support | ||
Highlight: | Double Sided Spray Solder PCB,Blue Ink Printed Circuit Board,Lead Free Automotive Circuit Board |
Product Description

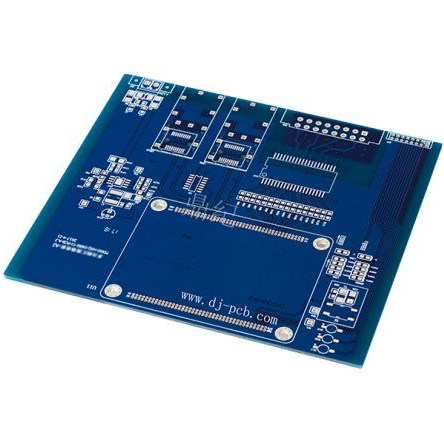

Blue ink double-sided spray solder PCB
Product Description
Blue ink double-sided spray solder PCB is a printed circuit board that integrates blue solder mask with double-sided spray solder (hot air solder leveling, HASL) surface treatment. It features a double-sided wiring design, where the substrate is coated with blue ink as the solder mask to insulate and protect the circuit, with the distinct blue color aiding in identifying circuit areas. Both sides of the board undergo spray solder processing: molten tin alloy (lead-containing or lead-free) is evenly applied to the exposed copper pads and leveled by hot air to form smooth, bright tin layers. This board is suitable for small to medium complexity circuits, accommodating the welding and assembly of conventional through-hole and surface-mount components.
Core Characteristics
- Blue ink solder mask + double-sided spray solder combination: The blue ink provides stable insulation and clear visual differentiation of circuits, while the tin layers on both sides offer a reliable soldering base with strong adhesion.
- Double-sided wiring structure: Supports bidirectional signal transmission, adapting to the layout requirements of standard electronic devices and meeting small to medium-scale circuit design needs.
- Mature process compatibility: The integration of blue ink solder mask and spray solder is stable, with good material compatibility, fitting seamlessly into conventional production workflows.
Main Advantages
- Reliable soldering performance: The tin layers ensure excellent solder wetting, reducing the risk of cold solder joints and enabling multiple rework soldering, facilitating mass assembly and post-maintenance.
- Effective protection and identification: The blue ink solder mask isolates the circuit from external environments, enhancing corrosion resistance, while its distinct color simplifies production inspection and fault diagnosis.
- Cost-effectiveness: The mature spray solder process and blue ink application offer high production efficiency and controllable costs, making it suitable for cost-sensitive fields like consumer electronics, home appliances, and industrial control.
- Good environmental adaptability: Maintains stable performance in normal temperature, humidity, and general dust conditions, ensuring consistent operation over extended periods.
Want to Know more details about this product
