Custom High-Density Gold-Plated FR-4 PCB Multi-Panel for Smart Home Devices
Product Details:
| Brand Name: | High Frequency PCB |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Vacuum packed |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Name: | High-Frequency PCB | Min Holes Size: | 0.1mm |
|---|---|---|---|
| Min.Line Spacing: | 3mil | Standard FR-4 Material: | Yes |
| Min.Line Width: | 0.075mm | Impendance Tolerance: | +/-10% |
| PCBA Service: | BOM List | Quotation Request: | Gerber Files |
| PTH: | +/-0.075Mm | Surface Treatment: | HASL/OSP/ENIG/ENEPIG |
| Normal Layers: | 2/4/6/8/10L Or Customized | Ink Oil Color: | Green,Red,Black,White,Blue,Yellow |
Product Description

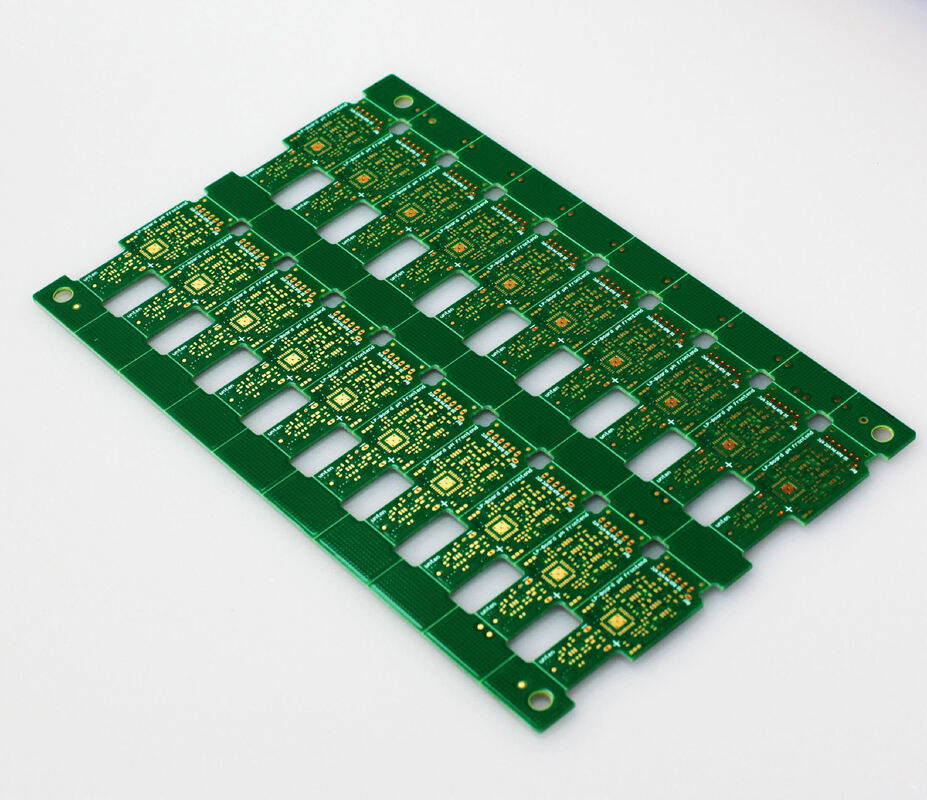

High-Density ENIG FR-4 Multi-Panel PCB Custom for WiFi & Wireless IoT Devices:
This custom multi-panel PCB is specifically engineered for 2.4G/5G WiFi modules, built on high-quality FR-4 substrate with ENIG (Electroless Nickel Immersion Gold) surface finish. It features high-density routing and gold-plated pads, ensuring low signal loss, excellent solderability, and long-term reliability for IoT, smart home, and wireless communication devices. The multi-panel design optimizes manufacturing efficiency and reduces per-unit costs, making it ideal for mass production of compact wireless modules.
What problems can this board solve for you?:
1.Reduces 2.4G/5G signal loss and interference for stable wireless transmission2. Prevents pad oxidation with ENIG finish, improves soldering success rate
3. Saves device internal space via high-density routing for miniaturization needs
4. Cuts unit cost and boosts production efficiency with multi-panel design
5. Enhances durability in complex environments (anti-corrosion, high-temperature resistance)
6. Enables precise mounting of fine-pitch components with smooth gold-plated pads
Customization Service:
Documents Required for Custom High-Density PCB
1. Gerber files (RS-274X): Complete PCB layout with all layers, the core production file.
2. Drill file: Detailed hole size/position for drilling processes.
3. BOM list: Clear specs of materials, surface finish and technical requirements.
4. Design drawing: Marked dimensions, tolerance and assembly notes for confirmation.
