OEM ODM Double Sided Printed Circuit Board FR4 Tin Spray PCB Through Hole Connection

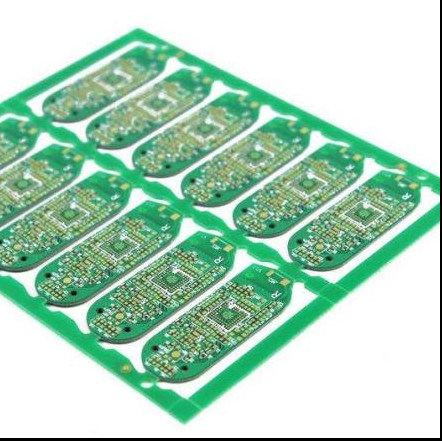

Double-sided tin spray PCB, headphone board storage board

Advantages of Double-sided PCB:

• Increase the wiring space
• The cost is relatively low
• Good electrical performance
• Adapt to high integration requirements

product  Description:

    Double-sided PCB, also known as double-sided printed circuit board, is a printed circuit board (PCB) with two-sided circuit connections. In this kind of PCB, the electronic components and circuit layout can be arranged on both sides of the PCB respectively, and the electrical connection of the circuits on both sides is achieved through vias (Vias). This structure greatly increases the functional density of the circuit board, allowing it to implement more circuit connections in a relatively small area.

product Features:

• through hole connection
• component placement
• Higher circuit density

Manufacturing process:

• Design and layout:Firstly, the PCB design is carried out through circuit design software, with wiring and component placement on both sides, and the position type of vias are planned at the same time.
• Etching: Remove the excess copper foil to form the desired circuit pattern.
• Assembly and welding: After the components are installed, welding treatment is carried out, which can be done using surface-mount technology (SMT) or through technology (THT).
