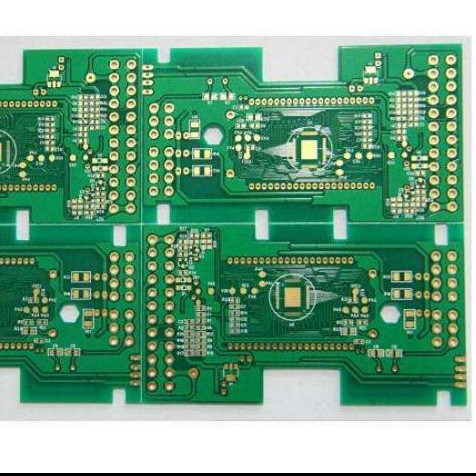

ENIG Surface Finishing Customized Board Size Medical Printed Circuit Board
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | Medical PCB | Layer: | 1-30L |
|---|---|---|---|
| Surface Mount Technology: | Yes | Material: | FR4 |
| Min.hole Size: | 0.1mm | Max.Board Size: | 528*600mm |
| Silkscreen: | White, Black, Yellow | Quotation Request: | Gerber File Or BOM List |
| Solder Mask Color: | Green, Blue, Black, Red, Yellow, White | Testing: | Flying Probe Test, X-Ray Inspection, AOI |
| Highlight: | ENIG surface finish medical PCB,custom size medical circuit board,medical printed circuit board with warranty |
||
Product Description
FR4-Based Medical PCBs: Meeting Healthcare Industry Standards:
A medical PCB is a specialized printed circuit board engineered for healthcare devices, especially patient monitoring systems. Made of high-grade FR4 material, it delivers superior durability, electrical insulation and mechanical strength. Designed to meet rigorous healthcare industry requirements, it delivers low-interference, precise signal transfer, supporting the reliable performance of medical equipment vital for patient care.Why Choose ENIG Surface Finish for Medical PCBs?:
1.Strong corrosion resistance & good electrical conductivity
Keeps medical devices like patient monitors working stably in sterile, high-demand healthcare settings.
2. Flat, even surface
Makes it easy to mount small, dense components and creates secure solder joints, perfect for compact medical device designs.
3. Non-porous & oxidation-proof
Prevents signal interference and extends the PCB’s service life, cutting down on device maintenance costs.
4. Meets medical industry rules
Follows strict safety and performance requirements, ensuring the PCBs are safe for life-critical medical uses.
Applications:
1.Patient Monitoring Devices
E.g., ECG monitors, blood pressure monitors, and pulse oximeters. ENIG PCBs ensure stable signal transmission for accurate vital sign tracking.
2.Diagnostic Equipment
Including ultrasound machines, portable MRI scanners, and in vitro diagnostic (IVD) analyzers. Their corrosion resistance supports long-term precision in clinical testing.
3.Portable Medical Devices
Such as handheld glucose meters and wearable health trackers. The flat, compact surface of ENIG PCBs fits miniaturized device designs.
4.Life-Support Equipment
Like ventilators and defibrillators. ENIG’s compliance with medical standards guarantees reliable performance in life-critical scenarios.
