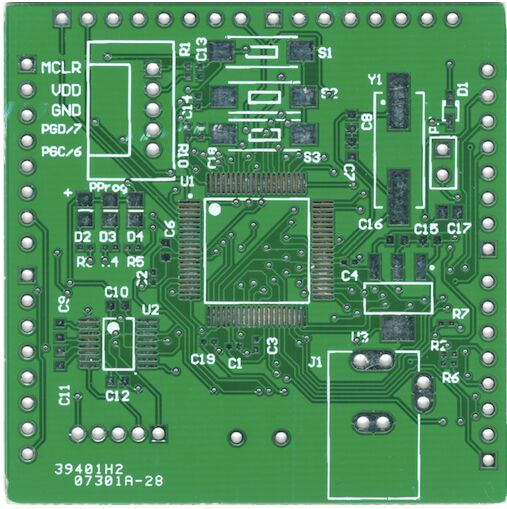

Customized Medical Printed Circuit Board Designed for Precision Medical Electronics
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Name: | Medical PCB | Material: | FR4 |
|---|---|---|---|
| Surface Mount Technology: | Yes | Layer: | 1-30L |
| Min.hole Size: | 0.1mm | Surface Finishing: | HASL/OSP/ENIG |
| Silkscreen: | White, Black, Yellow | Board Thickness: | 1.6/1.2/1.0/0.8mm Or Customizable |
| Quotation Condition: | Gerber Or BOM List | Testing: | Flying Probe Test, X-Ray Inspection, AOI |
| Highlight: | custom medical printed circuit board,precision medical electronics PCB,medical PCB with warranty |
||
Product Description
Bespoke Medical PCB:
The Medical PCB is a highly specialized Medical Printed Circuit Board designed specifically for use in critical healthcare applications. As patient safety and device reliability are paramount in the medical field, this Medical Printed Circuit Board undergoes rigorous testing procedures to ensure flawless performance and durability. Utilizing advanced testing methods such as Flying Probe Test, X-Ray Inspection, and Automated Optical Inspection (AOI), the Medical PCB guarantees exceptional quality and precision, making it an ideal choice for sensitive medical devices.
Technical Parameters:
| Product Name | Medical PCB |
| Max.Board Size | 528*600mm |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Board Thickness | Customizable |
| Material | FR4 |
| Min.line Width | 3mil |
| Min.line Spacing | 3mil(0.075mm) |
| Right Angle Bend | Yes |
| PTH | +/-0.075mm |
| Copper Overall | 0.5-5oz |
FAQ:
Q1: What brand manufactures the Medical PCB?
A1: The Medical PCB is manufactured by the brand Xingqiang.
Q2: What certifications does the Medical PCB have?
A2: The Medical PCB is certified with ROHS and CE certifications, ensuring compliance with international safety and environmental standards.
Q3: What is the minimum order quantity for the Medical PCB?
A3: The minimum order quantity is a sample or 1 piece, equivalent to 5 square meters.
Q4: What payment methods are accepted for purchasing the Medical PCB?
A4: Accepted payment methods include T/T (Telegraphic Transfer) and Western Union.
Q5: Where is the Medical PCB produced?
A5: The Medical PCB is produced in China.
Q6: What is the supply capacity of the Medical PCB?
A6: Xingqiang has a supply ability of up to 100,000 square meters.
