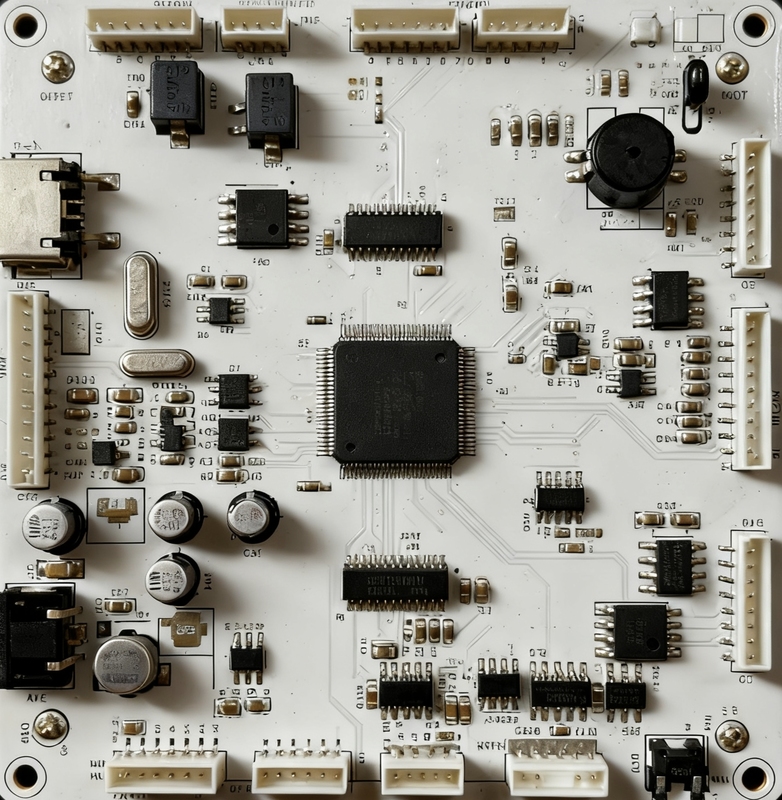

Customizable White Oil Assembly Circuit Boards Suitable for Electronic Products
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Packaging Details: | As Customer Requirements |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 80000 ㎡/Month |
|
Detail Information |
|||
| Categary: | Custom PCB Assembly | Customized Services: | Support |
|---|---|---|---|
| Pcb Material: | FR4 | Flame Retardancy: | Yes |
| Surface Finishing: | HASL/OSP/ENIG | Pcb Thickness: | 0.2~5.0mm |
| Board Size: | Customizable | Quotation Request: | Gerber Files,BOM List |
| Highlight: | custom white oil PCB assembly,electronic product circuit boards,customizable PCB assembly service |
||
Product Description
Robot Motor Drive Custom PCBA High Reliability:
PCBA, short for Printed Circuit Board Assembly, is the functional finished product formed by mounting electronic components (e.g., resistors, capacitors, ICs) onto a bare Printed Circuit Board (PCB) via soldering and other assembly processes. Unlike the bare PCB, which only features copper traces for conductive paths, PCBA integrates mechanical support and electrical connectivity, acting as the "backbone" of nearly all electronic devices—from consumer gadgets like smartphones and laptops to industrial controllers and medical equipment. Its core role is to enable signal transmission and power distribution between components, translating into specific device functions. The manufacturing typically involves solder paste application, automated component placement, reflow soldering, and quality inspections (e.g., AOI, functional tests) to ensure reliability. As a critical integrated unit, PCBA bridges individual components into operational electronic systems, underpinning modern technology’s functionality.
Applications of PCBA:
• Consumer Electronics: Used in devices like smartphones, laptops, smart TVs, and gaming consoles.
• Medical Devices: Essential for equipment such as heart rate monitors, imaging systems (MRI/CT), and diagnostic tools.
• Automotive: Found in engine control units (ECUs), GPS navigation, LED lighting, and safety systems.
• Industrial Control: Powers machinery, automation systems, power supplies, and monitoring equipment.
• Aerospace & Defense: Critical for communication, radar, and navigation systems requiring high reliability.
Customized services:
Quotation Needed:
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply you a free quote, DFM report, and material recommendation.
Essential PCBA Production Steps
1.PCB Fabrication (Creating the Bare Board):
• Imaging & Etching: Creating the conductive pathways on the copper layers.
• Drilling & Plating: Making holes and adding copper to connect layers.
• Solder Mask: Applying a protective layer (usually green).
• Surface Finish: Protecting exposed pads for reliable soldering.
2. Component Assembly (Turning the PCB into a PCBA):
• Solder Paste Printing: Applying solder paste onto the pads via a stencil.
• Pick and Place: Placing Surface Mount Devices (SMD) onto the solder paste.
• Reflow Soldering: Melting the solder paste to create permanent electrical connections.
• Inspection & Test (AOI/FCT): Verifying solder quality and ensuring the board functions correctly.
