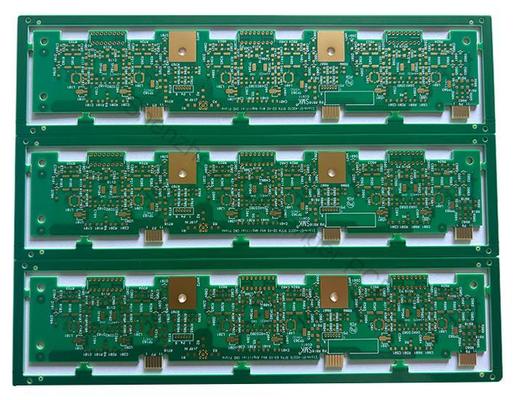

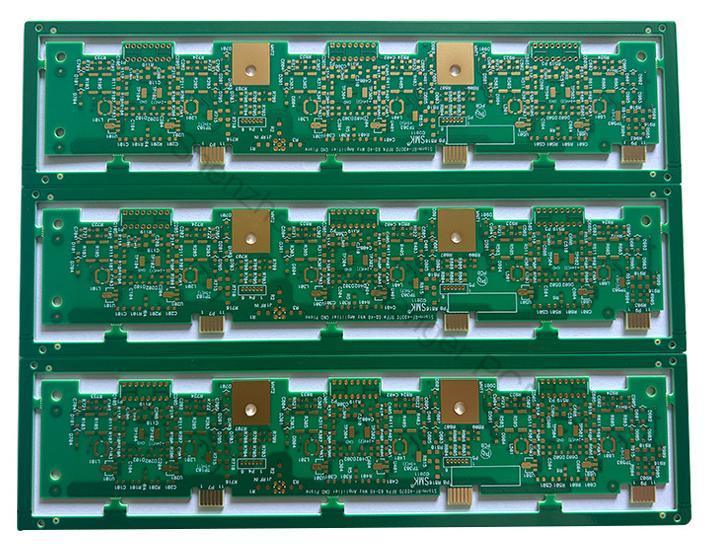

Military PCB Board With Green Solder Mask Color and Customized Thickness
Product Details:
| Brand Name: | Military PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | NA |
| Delivery Time: | 14-15 work days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Solder Mask Color: | Green, Blue, Black, Red, Yellow, White | Material: | FR4 |
|---|---|---|---|
| Impedance Control: | ±10% | Copper Overall: | 0.5-5oz |
| Min. Hole Size: | 0.1mm | Min. Line Width/Spacing: | 3 Mil |
| Max. Panel Size: | 528mm X 600mm | Silkscreen Color: | White, Black, Yellow |
| Highlight: | 300mmx100mm Military PCB Board,1.2mm Thick Military PCB Board |
||
Product Description
Rigious Testing and Quality Control :
A military PCB (Printed Circuit Board) is a specialized circuit board designed to meet the strict performance, reliability, and durability requirements of military and defense applications. Unlike standard commercial PCBs, military PCBs must withstand extreme temperatures, strong vibrations, moisture, radiation, and harsh environmental conditions. They are often made with high-grade materials, advanced manufacturing processes, and rigorous testing standards.
Technical Parameters:
| Surface Finish | HASL, OSP, ENIG |
| Max. Panel Size | 528mm X 600mm |
| Min. Line Width/Spacing | 3mil (0.075mm) |
| Testing Method | Flying Probe, Fixture Test |
| Silkscreen Color | White, Black, Yellow |
| Certifications | ROHS, CE,UL,ISO |
| Min. Hole Size | 0.1mm |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Thickness | 1.6/1.2/1.0/0.8Mm or Customized |
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
What do Gerber files typically contain?
Normally Gerber files Include:PCB Types,Product thickness, Ink color, Surface treatment process and If SMT processing is required, component BOM and tag drawing are also required.
Main Steps of Military-Grade PCB Production
1. Material Preparation
Select MIL-STD compliant high-reliability materials (e.g., high-Tg FR-4, PTFE) and cut to size.
2. Inner-Layer
Fabrication,Photolithography, etching and AOI inspection to form inner circuits.
3. Layer Lamination
Stack inner layers, prepreg and outer copper foils; bond via high temp/pressure.
4. Drilling & Plating
CNC drill vias/holes; desmear and copper-plate for interlayer electrical connection.
5. Outer-Circuit & Solder Mask
Form outer circuits via photolithography/etching; apply and cure military-grade solder mask.
6. Surface Finish & Legend Printing
Apply ENIG/hard gold finish; print and cure component legends.
7. Routing & Shaping
CNC/laser trim the board to final dimensions.
8. Reliability Testing & Packaging
Conduct thermal shock, vibration and electrical tests per military specs; vacuum-seal and deliver in anti-static packaging.
