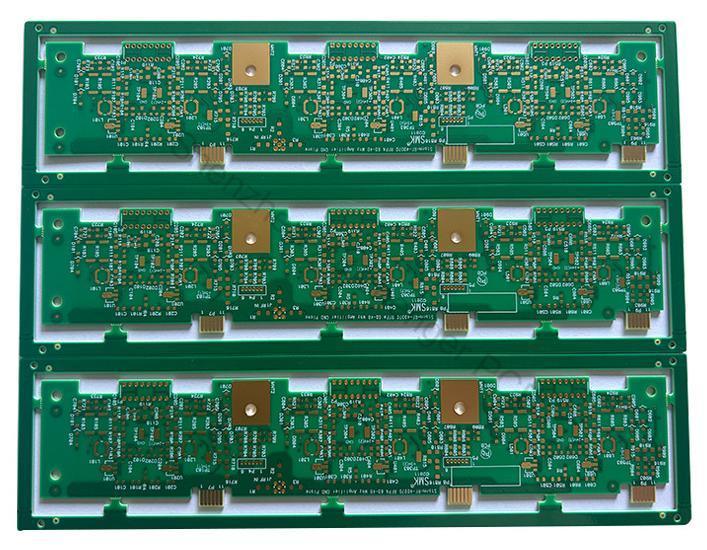

Custom PCB Reliable PCB Solutions for Aerospace, Naval & Ground Defense Systems
Product Details:
| Brand Name: | Military PCB |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Custom Military PCB | Material: | FR4 |
|---|---|---|---|
| Impedance Control: | ±10% | Min. Line Width/Spacing: | 3 Mil |
| Min. Hole Size: | 0.1mm | Outline Tolerance: | +/-0.1Mm |
| Copper Overall: | 0.5-5oz | Max. Panel Size: | 528mm X 600mm |
| Silkscreen Color: | White, Black, Yellow | Solder Mask Color: | Green, Blue, Black, Red, Yellow, White |
| Highlight: | 300mmx100mm Military PCB Board,1.2mm Thick Military PCB Board |
||
Product Description
Xingqiang Custom Military-Grade Multilayer PCB for Tactical & Industrial Use:
We are Xingqiang Circuit Board Technology Co., Ltd., a professional manufacturer of custom PCBs. This rugged multi‑panel PCB is designed for high‑reliability communication, sensor interface, and industrial control applications. Built with 4–6 multilayer structure and ENIG plus gold finger surface finish, it delivers stable signal integrity and strong wear resistance. Using high‑TG FR‑4, Rogers or PTFE materials, it supports extreme temperature, shock, and vibration resistance. It can be customized to military‑grade standards complying with MIL‑STD, ideal for defense, aerospace, tactical communication, and industrial systems.
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
What do Gerber files typically contain?
Normally Gerber files Include:PCB Types,Product thickness, Ink color, Surface treatment process and If SMT processing is required, component BOM and tag drawing are also required.
Main Steps of Military-Grade PCB Production
1. Material Preparation
Select MIL-STD compliant high-reliability materials (e.g., high-Tg FR-4, PTFE) and cut to size.
2. Inner-Layer
Fabrication,Photolithography, etching and AOI inspection to form inner circuits.
3. Layer Lamination
Stack inner layers, prepreg and outer copper foils; bond via high temp/pressure.
4. Drilling & Plating
CNC drill vias/holes; desmear and copper-plate for interlayer electrical connection.
5. Outer-Circuit & Solder Mask
Form outer circuits via photolithography/etching; apply and cure military-grade solder mask.
6. Surface Finish & Legend Printing
Apply ENIG/hard gold finish; print and cure component legends.
7. Routing & Shaping
CNC/laser trim the board to final dimensions.
8. Reliability Testing & Packaging
Conduct thermal shock, vibration and electrical tests per military specs; vacuum-seal and deliver in anti-static packaging.
