High-TG FR-4 Military PCB Custom PCB EMC&Waterproof for Defense & Aerospace Projects
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | Custom Military PCB Board | Material: | FR4 |
|---|---|---|---|
| Min Hole Size: | 0.1Mm | PCBA: | Surpport |
| Copper Overall: | 0.5-5oz | Layer Count: | 1-30 Layers |
| Board Thinkness: | 0.2-5.0mm | Max.board Size: | 528*600mm |
| Minimum Line Space: | 3mil (0.076mm) | Surface Finishing: | HASL/OSP/ENIG |
| Quotation Files: | Gerber Files Or BOM List | Oil Ink Color: | Blue/Red/Green/White/Black/Yellow |
| Highlight: | Blue Oil Military PCB Board,Waterproof PCB Circuit Board 1.2mm |
||
Product Description

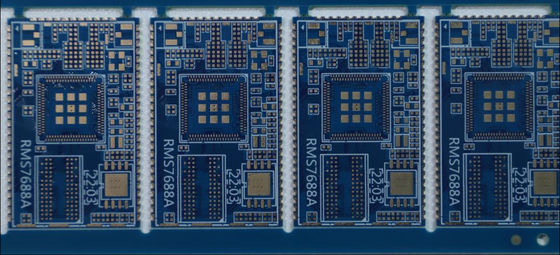

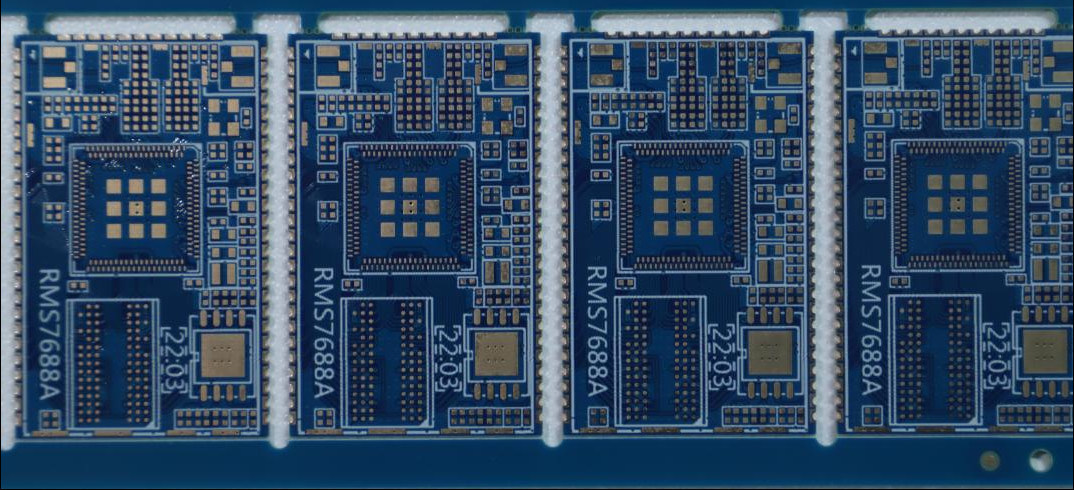

Advanced Military PCBs with Superior Environmental Resistance
Xingqiang customizes high‑reliability military PCBs for aerospace, defense, and tactical applications. Our multilayer boards feature high‑TG materials, ENIG surface finish, and robust design. They offer excellent resistance to temperature, shock, vibration, and corrosion. We accept Gerber files and BOM for full customization, with flexible MOQ and reliable quality assurance for global clients.
Product Performance & Application Characteristics
| Feature Category | Key Details |
| Environmental Resistance | Withstands extreme temperatures, shock, vibration, humidity, and chemical corrosion |
| Electromagnetic Compatibility | Resists electromagnetic interference (EMI) to ensure stable signal transmission |
| Performance Trait | Delivers consistent, long-lasting operation for mission-critical defense systems |
| Application Suitability | Optimized for avionics, battlefield communication, missile guidance, and aerospace equipment |
Customization Capabilities
• Layers: 1–30 layer multilayer PCBs
• Board Thickness: 0.2mm–5.0mm
• Line Width / Line Spacing: Fine pitch circuitry
• Hole Diameter: Small holes / blind and buried vias
• Surface Finish: ENIG, hard gold, HASL, OSP, immersion silver
• Materials: High-TG, halogen-free, aluminum substrate, high-frequency materials (Rogers, etc.)
Custom Military-Grade PCB Manufacturing Process
1.Receive customers’ Gerber files, BOM list and detailed requirements, then carry out DFM analysis to ensure design feasibility.
2. Confirm specifications including layer count, base material, board thickness, surface treatment, solder mask color and special performance needs.
3. Conduct inner layer circuit making, lamination, precision drilling, copper plating, outer layer patterning and etching.
4. Apply solder mask, silkscreen printing and selected surface treatment such as ENIG.
5. Perform electrical testing, impedance control, reliability inspection and environmental simulation tests.
6. Carry out final quality check, packaging and delivery with full production traceability.
What documents are required for custom PCB manufacturing?
1. Gerber files (RS-274X)
2. BOM (if PCBA needed)
3. Impedance requirements & stack-up (if available)
4.Test requirements (TDR, network analyzer, etc.)
What do Gerber files typically contain?
Normally,Gerber files includes: PCB Type,Board thickness, ink color, surface treatment process ect,.
We’ll reply within 24 hours with a free quote, DFM report, and material recommendation.
