Heat Resistant Custom Double Sided PCB Tailored to Your Lighting Fixture Specs
Brand Name:
Xingqiang
Certification:
ISO 9001 / ROHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber
Standard Packaging:
As Per Customer's Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
heat resistant double sided PCB
,custom lighting fixture PCB
,tailored double sided PCB
Product Name:
Custom Double Sided PCB
Min Hole Dia:
0.1 Mm
Boardthickness:
0.2-5.0mm
PTH:
+/-0.075Mm
Surface Mount Technology:
SMD, BGA, DIP, Etc.
Maxboardsize:
528mm X 600mm
Quotation Document:
Gerber Files Or BOM List
Test:
Universal Electric Testing
Profiling Punching:
Routing, V-CUT, Beveling
Silk:
White Or Made To Order
Regular Layers:
2 /4 /6/8/10 Layers Or Customized
Solder Mask Ink Color:
Green/White/Red/Blue/Yellow/Black
Product Description

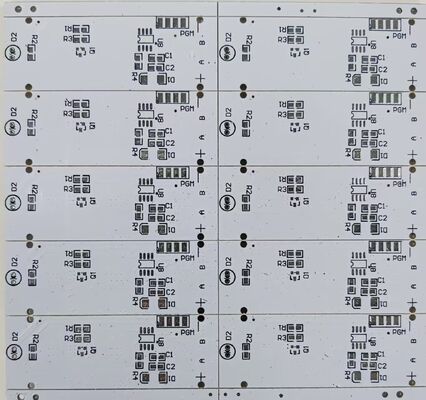

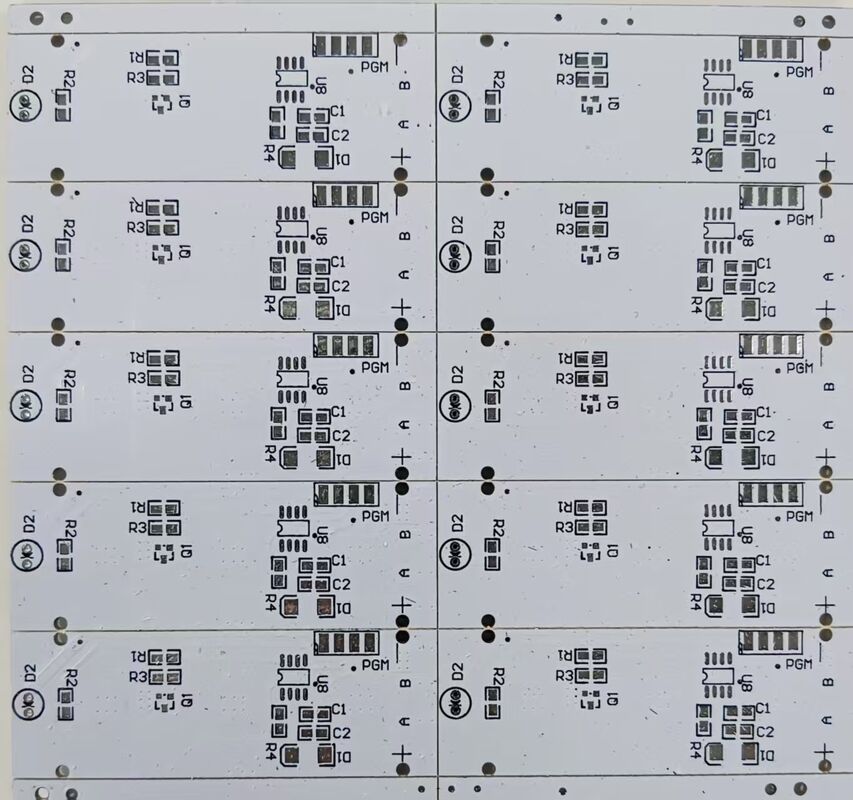

Custom Double-Layer FR-4 PCB for LED Modules:
This is a custom double-layer FR-4 PCB with white solder mask and OSP surface treatment, designed for LED driver modules. It offers reliable electrical connectivity, high reflectivity to boost lighting efficiency. Supporting tailored layouts for panel lights, downlights, and power supplies, it ensures strong solderability, RoHS compliance, and fast prototyping for small-batch to mass production needs.Key Advantages:
- High Reflectivity: White solder mask enhances light output and improves overall lighting efficiency.
- Reliable Solderability: OSP surface treatment ensures consistent, strong solder joints and protects against oxidation.
- Stable Performance: FR-4 material provides excellent electrical insulation and structural stability.
- Compliant & Eco‑friendly: Fully RoHS compliant, meeting global environmental and safety standards.
- Cost‑Effective: Balances high performance and durability with competitive pricing for various applications.
Customization Files Required for Production:
• Gerber Files: Complete set of Gerber data (layers, drills, silkscreen, solder mask) for PCB manufacturing.
• Drill Files: Exact drill sizes, positions, and tooling requirements for through holes and vias.
• BOM (Bill of Materials): List of components, specifications, quantities, and designators if assembly is included.
• PCB Specifications Document: Layer count, material (FR-4), thickness, surface finish (OSP), solder mask color, and tolerances.
• Schematic Files (optional): For design verification and cross-checking netlists.
• Special Instructions: Notes on testing, impedance control, IPC standards, or packaging requirements.
Factory showcase
PCB Quality Testing
Certificates and Honors
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
DThe board successfully passed our 48-hour salt spray test; the white solder mask retained its luster and fully meets the standards for outdoor industrial equipment.
-
IThe packaging is very thoughtful; fragile areas are extra reinforced, anti-static labels are clearly visible, and sufficient desiccant is included to prevent moisture damage.
