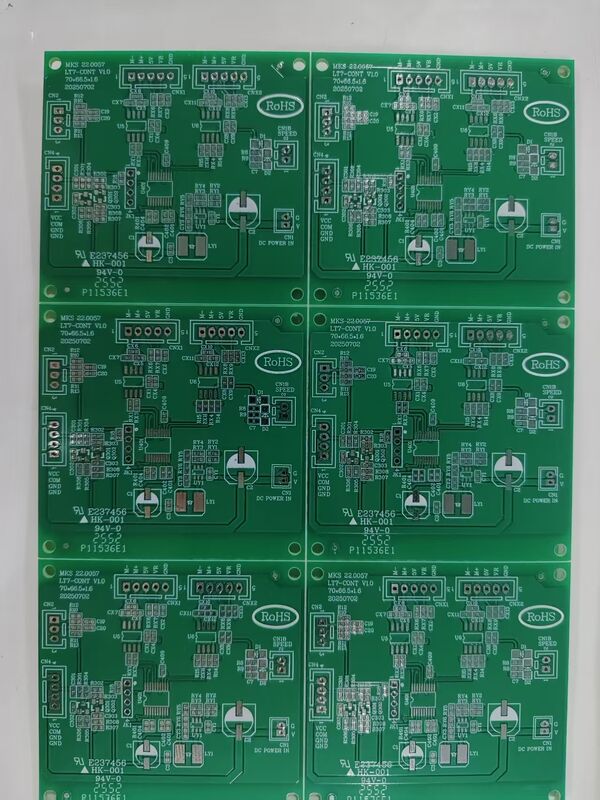

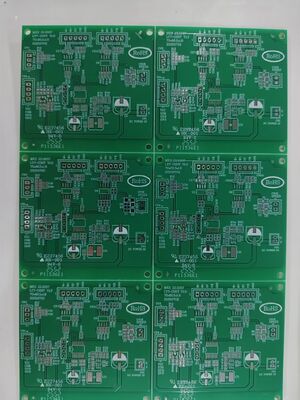

Tailored Double-Sided PCB Board Green Solder Mask HASL for Small Household Appliances
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based On Gerber |
| Packaging Details: | As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| PCB Type: | Custom Double-Sided PCB Board | Routing: | +/-0.1mm |
|---|---|---|---|
| Profile: | Route | Layer Counts: | 1-30L |
| Surface Treatment: | HASL-LF | Copper Thickness: | Customizable |
| Special Thickness: | 2.0/0.6/0.2/0.4Mm | IPC Standard: | IPC-A-610 E Class II |
| Quotation Files Request: | Gerber Or BOM List | Profiling Punching: | Routing, V-CUT, Beveling |
| Pcb Board Thickness: | 1.6mm/1.2mm/1.0mm/0.8mm | Solder Mask Color: | Green/Red/White/Black/Yellow/Blue |
| Highlight: | double sided PCB board green solder mask,HASL PCB for small appliances,tailored double sided PCB board |
||
Product Description
Reliable Custom Dual Sided PCB with Excellent Electrical Performance:
The Custom Double Sided PCB is a versatile and high-quality Double Sided PC Board designed to meet the diverse needs of electronics manufacturers and hobbyists alike. This Dual Sided PCB offers exceptional performance, reliability, and flexibility, making it an ideal choice for a wide range of electronic applications. With its precise construction and superior materials, this Double Sided PC Board ensures excellent electrical performance and durability, providing a solid foundation for your electronic circuits.
Basic Features & Customization of Double-Sided PCB
| Item | Details |
|---|---|
| Type | Double-Sided / 2 Layer PCB |
| Material | FR-4 (standard, High-Tg optional) |
| Thickness | 0.2–5.0 mm (customizable) |
| Surface Finish | Lead-Free HASL (standard), ENIG/OSP optional |
| Solder Mask | Green (custom colors available) |
| Customization | Dimensions, outline, hole size, surface finish, solder mask color, silkscreen, IPC Class 2 |
| Applications | Consumer electronics, industrial control, power supply, LED driver, DIY projects |
Documents Required for Custom Double-Sided PCB:
1. Gerber Files (RS-274-X format): Top/bottom layers, solder mask, silkscreen, drill, profile.
2. Drill File (Excellon format): Hole sizes, positions, plated/unplated.
3. PCB Specifications: Layer count, material (FR-4), thickness, copper weight, surface finish, solder mask color, IPC class, quantity.
4. PCBA(Bill of Material)
5. Special Requirements: Impedance control, testing, RoHS/UL, packaging, delivery.
