Customized Black Double Sided PCB FR-4 Precision Craft for Industrial Equipment
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based On Gerber |
| Packaging Details: | As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Name: | 2 Layer Printed Circuit Board | IPC Class II: | Yes |
|---|---|---|---|
| Minimum Holesize: | 0.1mm | Mini Line Width: | 0.075mm |
| Conductor Space: | 3 Mil | Copper Overall: | 0.5-5oz |
| Price: | Gerber Files | Max Layer Count: | 1-30 Layers |
| Testing Method: | 100% E-test | Special Thick: | 0.8Mm,0.6Mm,.0.4Mm |
| Pcb Thickness: | 2.0Mm,1.6Mm,1.2Mm1.0Mm | Hole Size Tolerance: | PTH ±0.075, NTPH ±0.05 |
| Surface Finished: | OSP Immersion Gold .LF-HASL | Solder Mask: | Green/ White/ Black/ Blue/ Yellow/Red |
| Highlight: | Customized black FR-4 PCB,Double sided PCB for industrial equipment,Precision crafted industrial PCB |
||
Product Description
Xingqiang High Quality Custom PCB Fabrication Service:

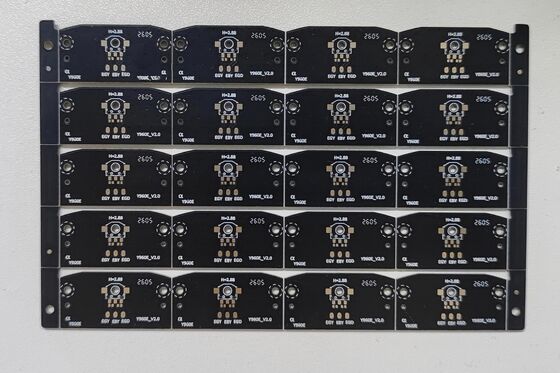

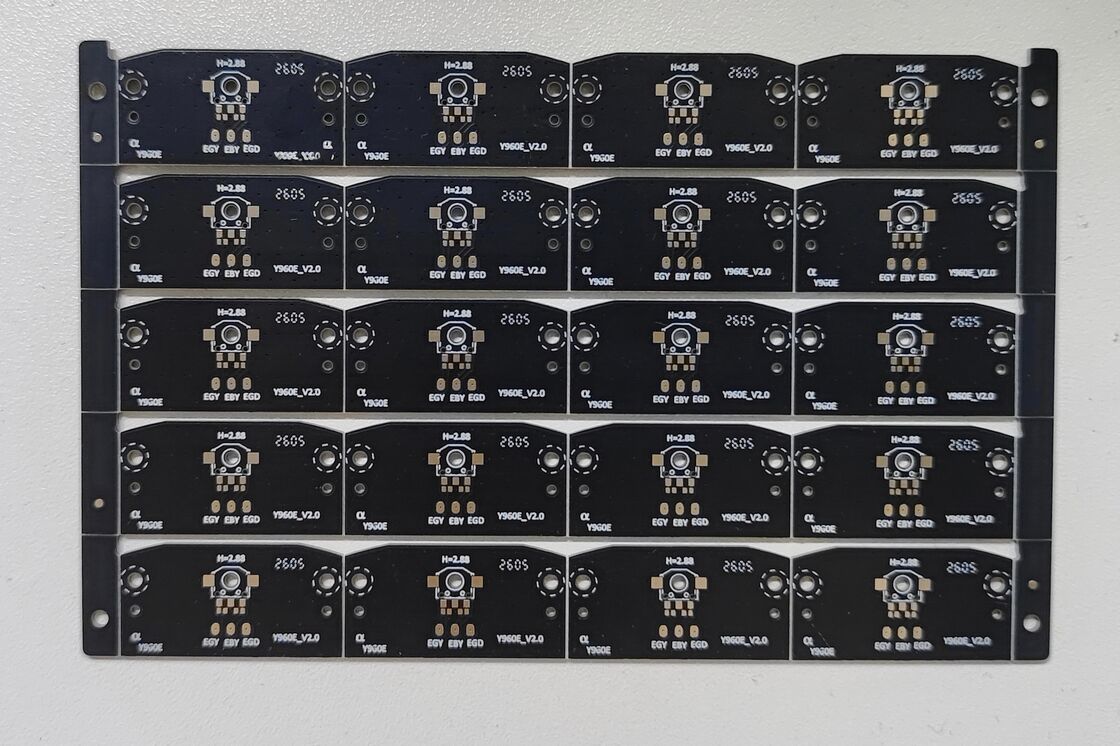

At Xingqiang, we produce precision double-sided PCBs based on customer-provided Gerber files. Our advanced manufacturing process delivers accurate etching, consistent quality, and reliable conductivity for joystick and control module applications. We offer customizable copper thickness, solder mask options, and panelized production. Fast turnaround and strict quality control for both small and bulk orders.Technical Parameters:
| Item | Description |
|---|---|
| Product Type | Custom Double Sided PCB |
| Material | High-performance FR‑4 PCB substrate |
| Certification | CE, FCC, RoHS compliant, lead-free |
| Process | Precision etching, CNC drilling, black solder mask, clear silkscreen |
| Structure | Panelized design, easy to separate, stable structure |
| Performance | High temperature resistance, anti-interference, stable signal transmission, good solderability |
| Application | Custom mechanical keyboards, DIY electronics, audio equipment, industrial control, IoT devices |
| Advantage | Compact size, reliable quality, long service life, widely compatible with encoders |
FAQ:
1.Q:How many layers can your circuit boards provide?
A:We typically provide 1-30 layer boards, and in special cases, we can stack more layers.
2. Q:Do your circuit boards support customization?
A:Yes, we support customized designs. You can send us your Gerber files and BOM list, and we will provide you with an accurate quote based on the information and market conditions.
3. Q:What do Gerber files typically contain?
A:To proceed with custom PCB production, please provide Gerber files, PCB dimensions, layer count, material and technical specifications, order quantity, delivery details, and optional BOM & assembly requirements if PCBA is needed.
4. Q:What is your minimum order quantity for PCB boards?
A:Our minimum order quantity is 1 piece(5 square meters),the larger the quantity, the bigger the discount.
5. Q:Do you have relevant certification certificates to support this?
A:We hold numerous important certifications, including ISO, UL, CE, and RoHS. All products undergo rigorous quality testing.
6. Q:What payment method do you usually use?
A:For small orders, samples, or urgent payments, we accept Western Union. For large orders, we recommend T/T, which ensures the safety of both parties.
